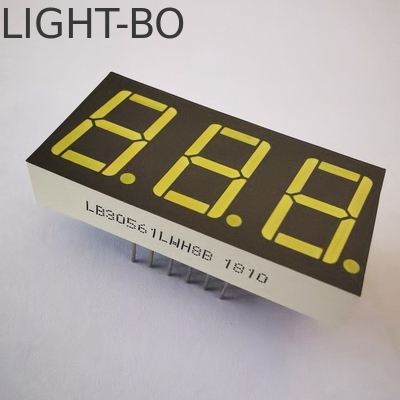

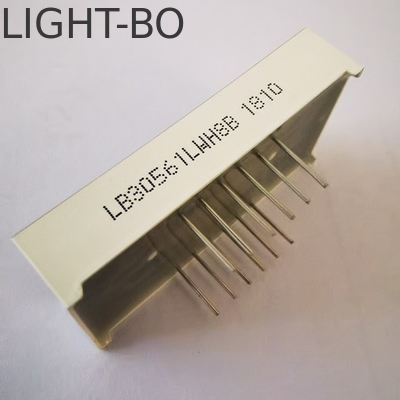

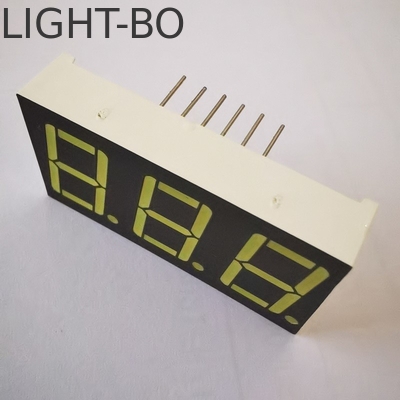

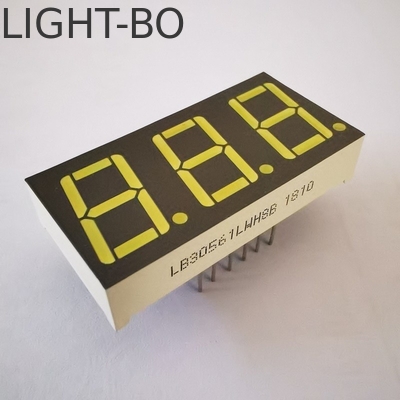

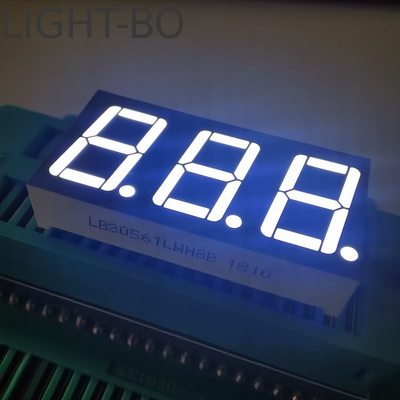

Common Anode Ultra Bright White Grey Surface 7 Segment 3digit 14.2mm LED Display for Temperature Controller

Common Anode Ultra Bright White Grey Surface 7 Segment 3digit 14.2mm LED Display for Temperature Controller

Brand Name:	LIGHTBO
Model Number:	LB30561IWH8B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT , Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Package Dimensions:

93*16mm

Polarity:

Common Anode

Emitting Colour:

Green/Red

Display Brightness:

Ultra Bright

Digits:

Material:

PCB,Epoxy,LED Chip,plastic

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

14.2mm 7 Segment LED Display

Temperature Controller 7 Segment LED Display

3digit 7 Segment LED Display

Product Description

Common Anode Ultra Bright White Grey Surface 7 Segment 3digit 14.2mm LED Display for Temperature Controller

Product Description:
LED DISPLAY 7 SEGMENT 3 DIGIT 14.2MM

Character height: 0.56"( 14.2mm)

Outer dimensions: 37.6*19*8 mm

Polarity: Common cathode

Forward voltage: 2.8-3.2V/led

Forward current:5-10mA/ led

Made with yellow epoxy, grey surface

Ultra bright WHITE

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on.
