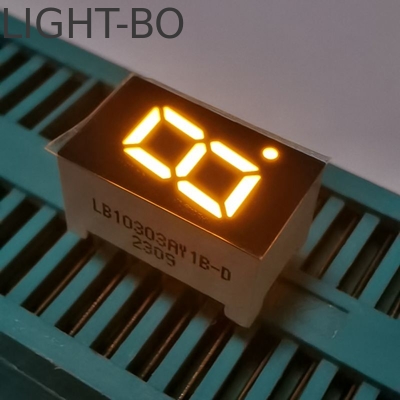

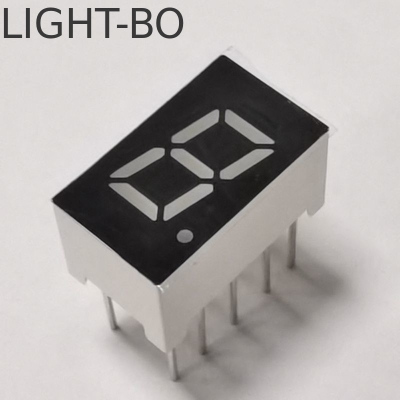

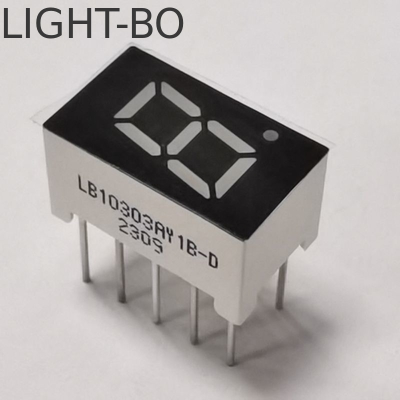

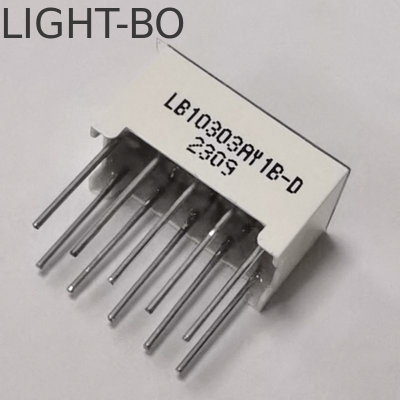

Amber color 7.62mm Single Digit 7 Segment LED Display common anode

Amber color 7.62mm Single Digit 7 Segment LED Display common anode

Brand Name:	LIGHT-BO
Model Number:	LB10103AY1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Package Dimension:

7.6 X 12.7 X 6.1mm

Digit Height:

0.3inch

Digits:

Wavelength:

585-595nm

Face Colour:

Black

Usage:

Indoor/Outdoor

Application:

Hood

Operating Temperature:

-45-80℃

Packaging Details:

EPE+CARTON

Supply Ability:

50000 PCS/Day

Highlight:

7.62mm 7 Segment LED Display

Single Digit 7 Segment LED Display

Amber Color 7 Segment LED Display

Product Description

Amber color 7.62mm Single Digit 7 Segment LED Numeric Display common anode

Product Descriptions:
Colour:Super bright amber
Face Colour:Black
Luminous intensity:60-70mcd/dice
Forward voltage:1.8-2.4V/led
Emitting colors: red, blue, yellow green, pure green,white, amber, orange, and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Product Features:
OEM and ODM orders are accepted
High luminous intensity and reliability
Big viewing angle
Stable performance
Long lifetime
Easy assembly
IC Compatible
RoHS directive-compliant

Applications:
Widely used for audio equipments or instrument panels, digital indicators and numeric displays ,digital clock indicators,digital counters, digital read-out display panels and so on .
