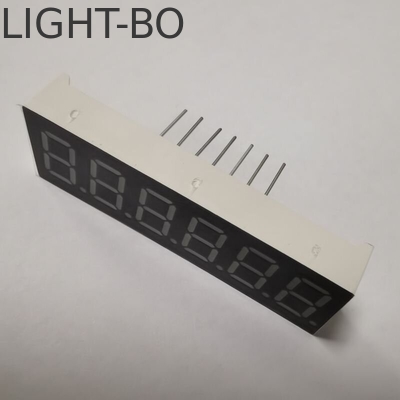

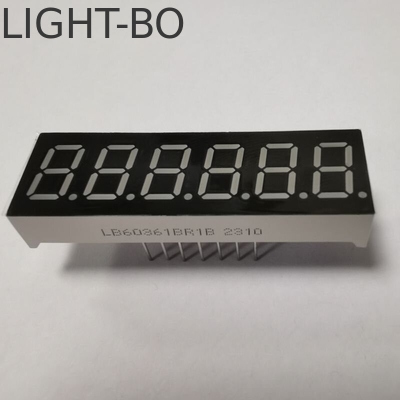

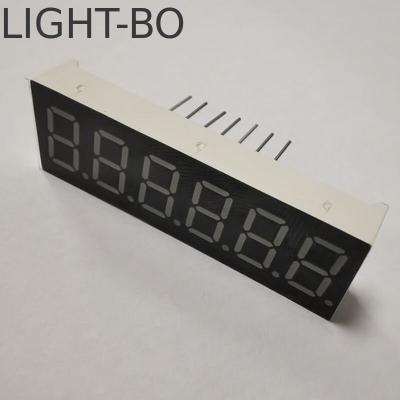

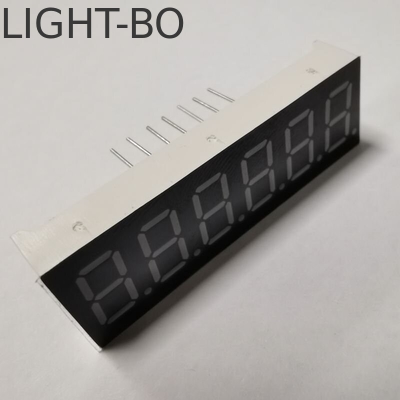

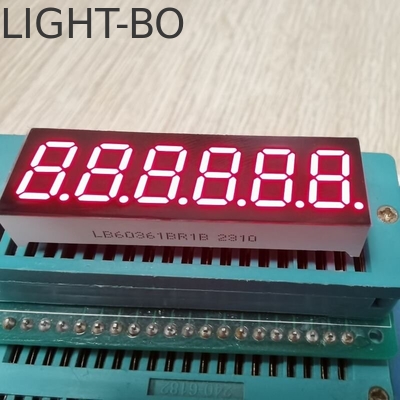

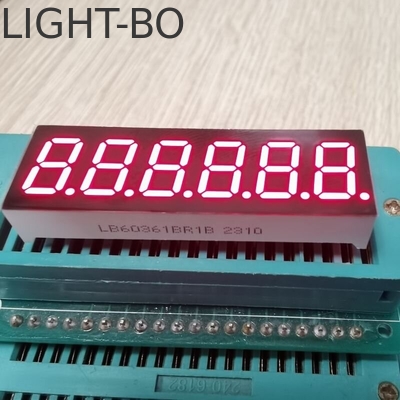

Ultra bright Red 6-digit 0.36-inch 7 Segment LED Display, Widely Used for Instrument Panel

Ultra bright Red 6-digit 0.36-inch 7 Segment LED Display, Widely Used for Instrument Panel

Brand Name:	LIGHT-BO
Model Number:	LB-60362IUR1B-#6498
MOQ:	1000
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO9001&RoHS

Polarity:

Common Anode

Emitting Color:

Ultra Bright Red

Quality:

High Quality

Brightness:

High Brightness

Usage:

Indoor/Outdoor

Digit:

Digital Height:

0.36-inch

Pin Type:

DIP

Application:

Temperature Control

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/day

Highlight:

0.36-inch 7 Segment LED Display

Instrument Panel 7 Segment LED Display

Ultra bright 7 Segment LED Display

Product Description

Ultra Bright Red 6-digit 0.36-inch 7 Segment LED Display

High-performance 7-segment LED display with 0.36-inch digit height, designed for instrument panels and industrial applications.

Product Specifications

Digit Height: 0.36 inches (9.2mm)

Outer Dimensions: 45.8 x 14mm

Polarity: Common Anode

Available Colors: Red, Blue, Yellow Green, Pure Green, Pure White, Amber, Orange

Features: High-luminous intensity, low-current operation, RoHS compliant

Product Range

Digit Sizes: 0.25" to 20"
Digit Numbers: 1, 2, 3, 4, 5 and 6 digits
Segment Types: 7 segment, 14 segment and 16 segment
Available Colors: Red, Yellow-green, Green, Blue, Yellow, Pink, White, Bi-color
Surface Colors: Black, Gray or Red

Key Features

White segment with black surface
High luminous intensity
Low current operation
Stable performance
Continuous uniform segments
Easy mounting on PCB
IC compatible
RoHS compliant

Applications

Audio equipment and instrument panels
Digital indicators
Multimedia products
Bank exchange rate displays
LED clock displays
Gas station displays and various equipment/machine displays
Industrial equipment: ovens, test equipment, analytical instruments, process control systems, temperature controllers, PLCs, security systems

Technical Specifications

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Electrical Characteristics by Color Code

Yellow Green (J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.
