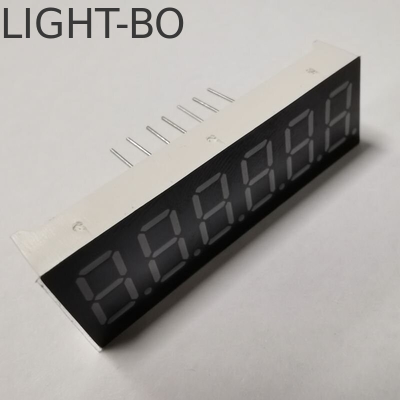

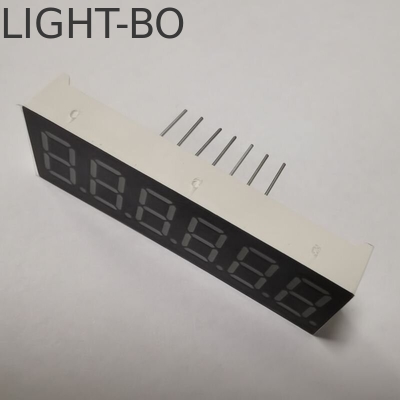

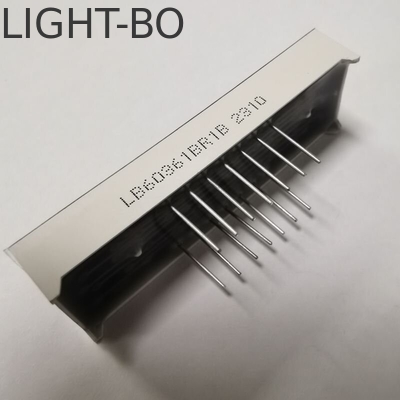

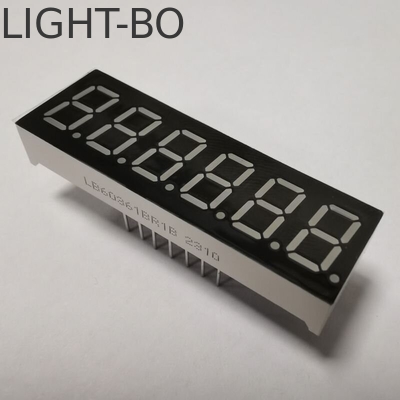

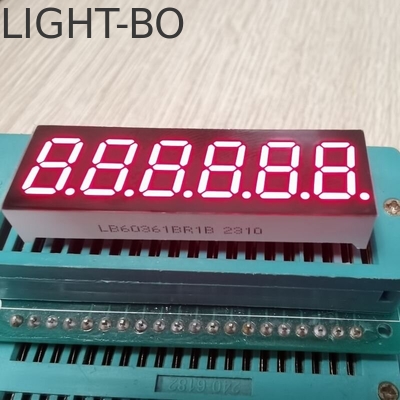

Orange 6-digit 0.36-inch 7 Segment LED Display, Widely Used for Instrument Panel

Orange 6-digit 0.36-inch 7 Segment LED Display, Widely Used for Instrument Panel

Brand Name:	LIGHT-BO
Model Number:	LB-60362IF1B-#6498
MOQ:	1000
Payment Terms:	T/T, Western Union
Supply Ability:	50000PCS/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO9001&RoHS

Polarity:

Common Anode

Emitting Color:

Orange

Quality:

High Quality

Brightness:

High Brightness

Usage:

Outdoor,Semi-outdoor

Digit:

Pin Type:

DIP

Application:

Temperature Control

Interface Type:

Common Anode

Shipping:

By DHL, TNT, UPS, EMS, Etc.

Feature:

Fast Heat-dissipation,Low Power

Delivery Date:

10- 15days

Location:

Shenzhen

Emitting Colour:

Red,Blue,Green,White,Amber,Orange

Display Life:

50,000 Hours

Product Type:

SMD Technology

Surface Color:

Black

Face Colour:

Black

Service:

OEM / ODM

Characteristics:

High Quality With Reasonable Price

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/day

Highlight:

Instrument Panel 7 Segment LED Display

Orange 7 Segment LED Display

Product Description

Digit height: 9.2mm (0.36-inch)
Outer dimensions:43.5 x 14.0 x 7 mm
Common anode
Made with white segments, black surface
Display Colour: Super bright red
Wavelength:630-635nm
Luminous intensity : 50-60MCD
Forward voltage: 1.8-2.2V/led
Forward current:5-10mA/LED

Emitting colors: red, blue, yellow green, pure green, amber, orange, yellow and white
High luminous intensity and reliability
Low power Consumption
Extremely low current
Low evelopment cost
Stable performance
Continuous uniform segments
Long lifetime
Easy assembly
IC compatible
Certificate: RoHS

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm
