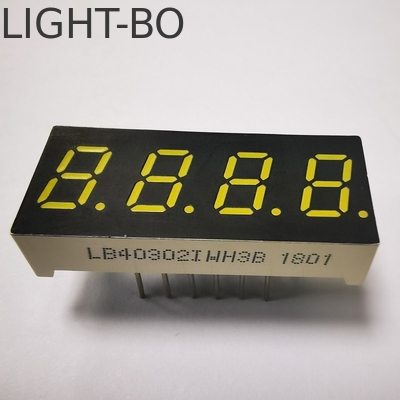

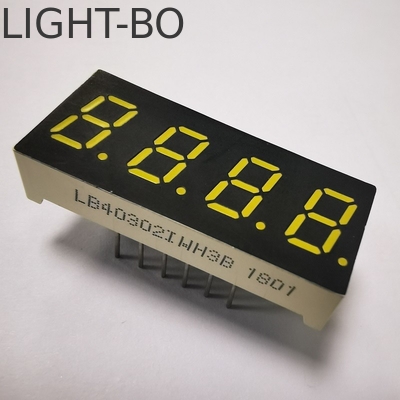

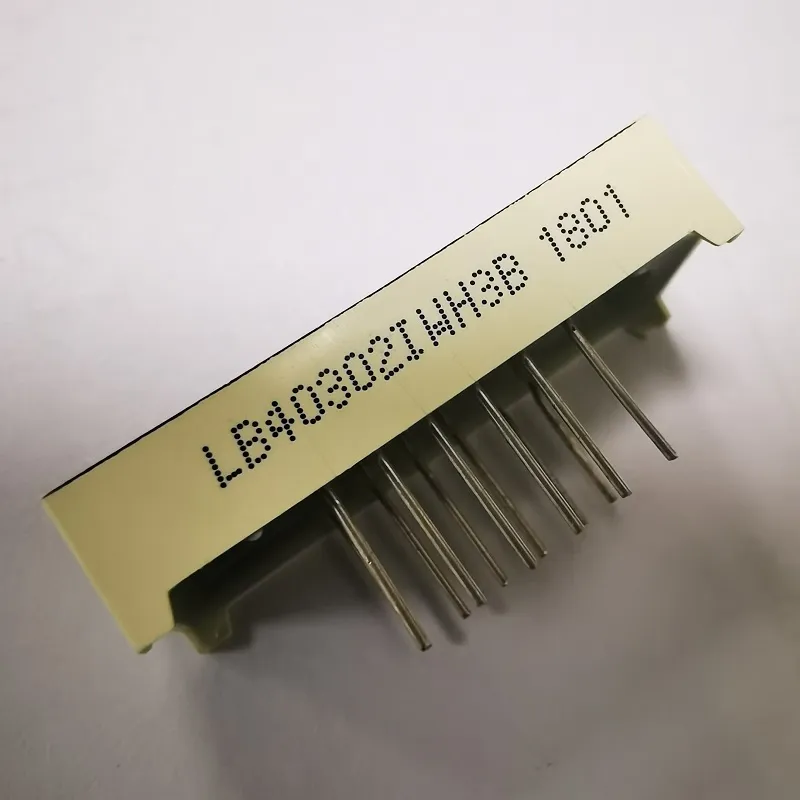

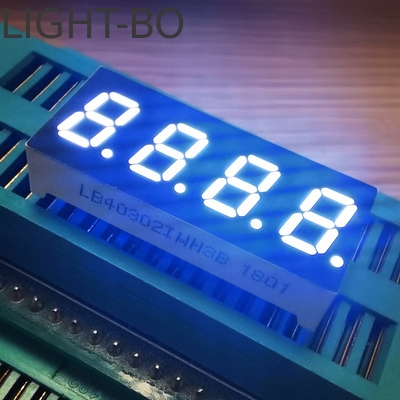

4 Digit 7 Segment LED Display Common Cathode Ultra White 7.62mm for Temperature Indicator

4 Digit 7 Segment LED Display Common Cathode Ultra White 7.62mm for Temperature Indicator

Brand Name:	LIGHT-BO
Model Number:	LB40302LWH3B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Product Size:

30.5 X 13 X 7mm

Application:

Home Appliance

Polarity:

Common Cathode

Pin Type:

DIP/SMD

Digital Number:

1,2,3,4,5,6......

Life Time:

More Than 3 Years

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

Ultra White 7 Segment LED Display

4 Digit 7 Segment LED Display

7.62mm 7 Segment LED Display

Product Description

Ultra White 7.62mm 4 Digit 7 Segment LED Display Common Cathode for Temperature Indicator

Product Description:

4 Digit 7 Segment LED Display

Character height: 0.3"( 7.62mm)

Outer dimensions: 30.5 x 13 x 7mm

Polarity: Common cathode

Yellow Epoxy black surface

Ultra bright WHITE

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=20mA	100		140	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Color Temperature		If=20mA	6000		6500	K
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

OEM and ODM orders are accepted
High luminous intensity and reliability
Big viewing angle
Stable performance
Long lifetime
Easy assembly
IC Compatible
RoHS directive-compliant

Applications:

Widely used for audio equipment or instrument panels, digital indicators and numeric displays, digital clock indicators,digital counters, digital read-out display panels and so on.

FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.

Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.
Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.

Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list.

Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.

Q: May I have some samples for testing?

A: Yes,we can provide 5-10pcs free samples in your delivery cost.
