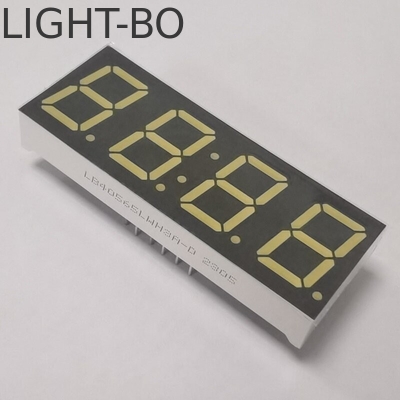

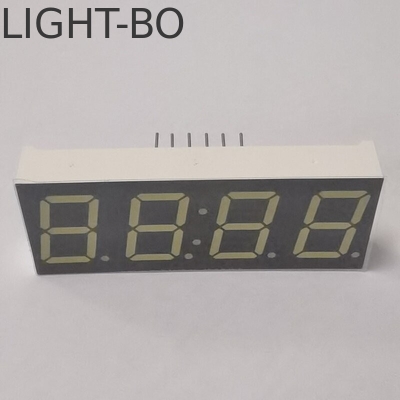

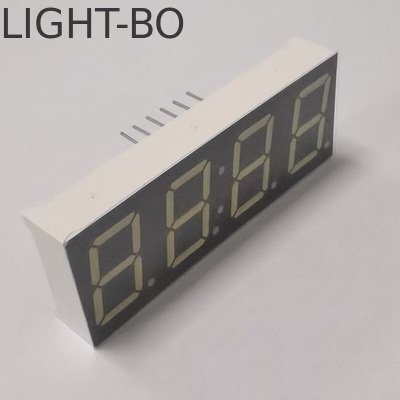

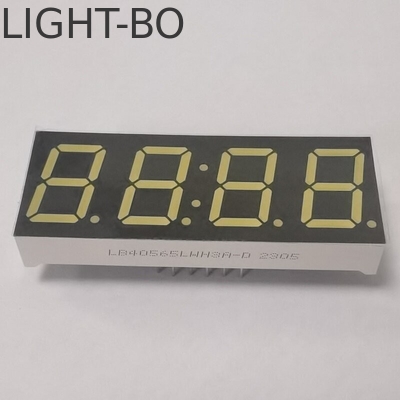

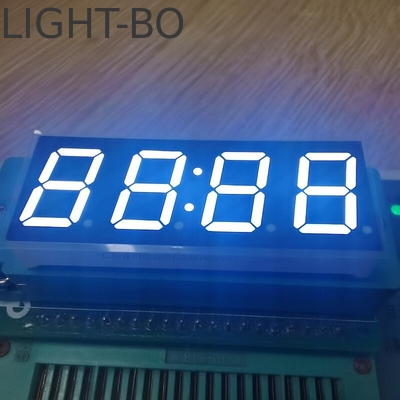

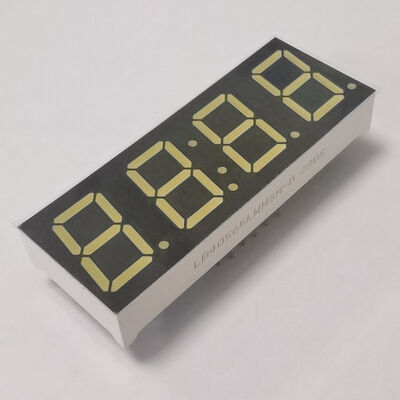

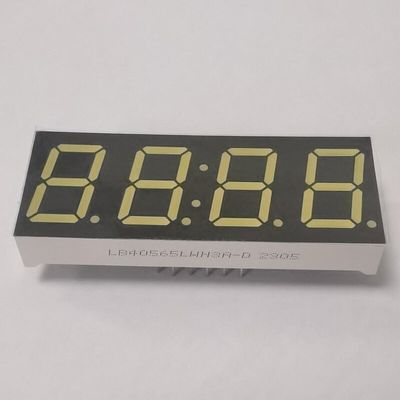

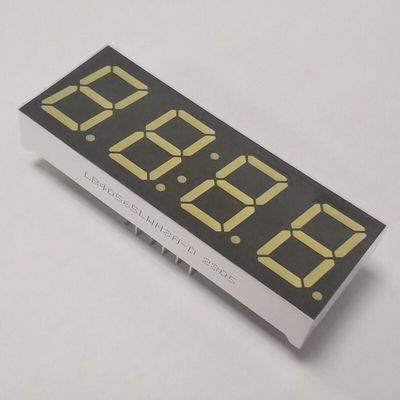

4 Digit 14.2mm Orange 7 Segment LED Display Common Anode For Temperature Control

Name: 4 Digit 14.2mm Orange 7 Segment LED Display Common Anode For Temperature Control
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB40565LWH3A-D 2305
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB40565LWH3A-D 2305
MOQ:	1000
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO9001&RoHS

Document:

LB40565-L-I.pdf

Polarity:

Common Anode

Emitting Color:

Super Bright Red

Quality:

High Quality

Brightness:

High Brightness

Usage:

Indoor/Outdoor

Digit:

Dimensions:

43.5 X 14.0 X 7mm

Digital Height:

14.2mm ( 0.56')

Life Span:

100000 Hours

Forward Voltage:

2.8-3.3v/led

Pin Type:

DIP

Surface Color:

Black

Application:

Temperature Control

Tube Chip Color:

Full Color,Red,Green,white,Blue

Screen Dimension:

Customized Size,12.7x 7.6 X 7mm,50.4*19.0*8.1mm,113mm*29mm,28.8*40.8mm

Display Function:

Graphics,Animation,Video,numeral 0-9,temperature

Pixels:

10mm,7mm,25mm,8.0,10.20mm

Color:

Blue,yellow,green,red,white

Warranty:

2 Years,1 Year

Product Name:

Hot Video HD P6 7 Segment LED Display Screen,Led 7 Segment Led Display,Chestnuter Led Video Display Panel

Name:

LED Price Station Petrol Display,Small Seven Segment 3 Digits 0.2 Inch 7 Segment Smd Led Display,4 Digit 7 Segment Display,10 Inch 7 Segment Display LED

Polarity:

Common Anode,Common Cathode,C.C&C.A

Operating Temperature:

-35 ~ +85 ℃,-20 +85,-40~80 ℃,-45-80℃

Life Span:

100000hours,10 0000 Hours,Over 50000 Hours

Voltage:

DC12V,90~120V/220~240V (base On The Customers' Need)

Digit Height:

0.2 Inch,1.5,1.2,0.38,0.5

Led Chip:

Epistar,InGan,AlGanlp

Oem:

Yes

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/day

Highlight:

14.2mm 7 Segment LED Display

Temperature Control 7 Segment LED Display

Common Anode 7 Segment LED Display

Product Description

4 Digit 14.2mm Orange 7 Segment LED Display

Common anode configuration designed for temperature control applications and industrial equipment.

Product Overview

We supply comprehensive 7 segment LED display solutions with various configurations:

Digit sizes ranging from 0.25" to 20"
Available in 1, 2, 3, 4, 5 and 6 digit configurations
Segment options: 7 segment, 14 segment and 16 segment
Multiple emitting colors: Red, Yellow-green, Green, Blue, Yellow, Pink, White, Bi-color
Surface color options: Black, Gray or Red

Key Features

White segment with black surface for optimal contrast
High luminous intensity with low current operation
Stable performance and continuous uniform segments
Easy PCB mounting and IC compatibility
RoHS compliant for environmental safety

Applications

General Applications

Audio equipment and instrument panels
Digital indicators and multimedia products
Bank exchange rate displays and LED clock displays
Gas station displays and various equipment/machine indicators

Industrial Equipment

Industrial ovens and reliability test equipment
Analytical instruments and process control equipment
Test and measuring instruments
Temperature controllers and programmable logic controllers
Security systems

Technical Specifications

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Orange (Code: F) Specifications

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)

Established in 2006, we are an ISO 9001:2015 certified company with over 15 years of OEM and ODM experience in optoelectronics LED displays. We integrate R&D, manufacturing, and sales to provide high-quality, cost-effective customized solutions.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot matrix LED Display widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostats indicators, and heating/cooling control systems.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces, but we also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes, we can provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Standard delivery time is 10-20 days, depending on order quantity and material availability. Urgent orders with available materials can be ready in 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

A: Yes, we can quote prices based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping charges depend on shipment size and method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: Will you keep my custom design confidential?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the lead time for customized product samples?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and approved drawings.

Q14: What shipping methods do you use?

A: We ship via DHL, FEDEX, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.
