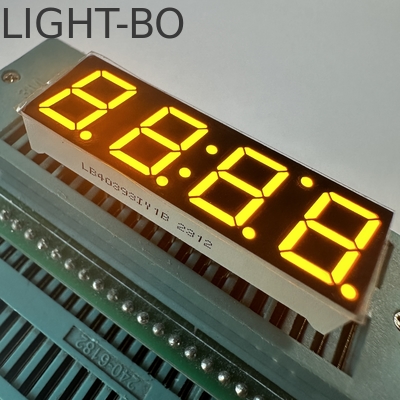

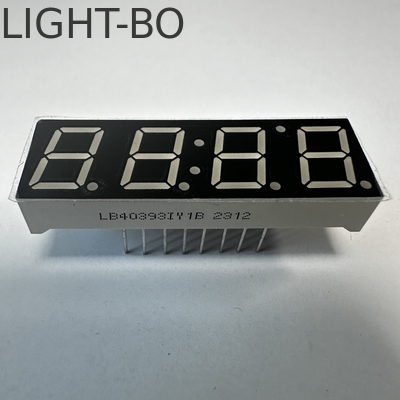

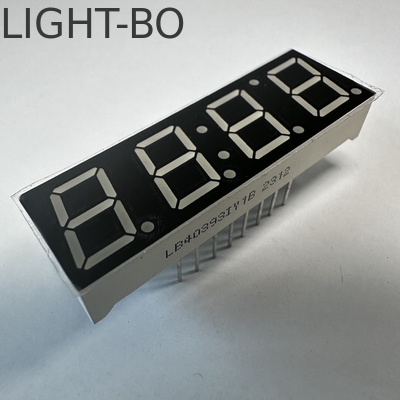

0.39" 4 Digit 7 Segment Yellow Common Cathode for Temperature Humidity Indicator

• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC

  Code:Yellow Green- J

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm



  Code:Amber/Yellow -Y

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm



  Code:Orange -F

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm



  Code:Super Bright Red -R

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm



  Code:Ultra Bright Red -UR

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm



  Code:Pure Green -G

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm


  Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

•

• Code:Ultra Bright White -WH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm



•

Product features:
High luminous intensity and reliability
Low power consumption
Extremely low current
Stable performance
Continuous uniform segments
Easy mounting on PC boards and sockets
IC compatible
Long lifetime
Meet RoHS compliant

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
