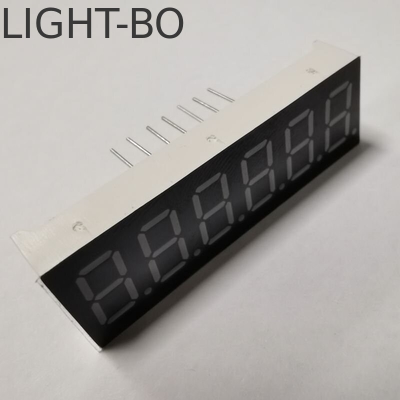

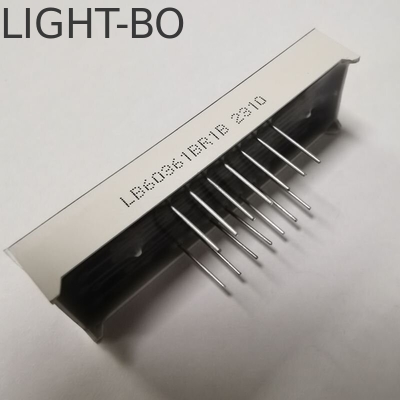

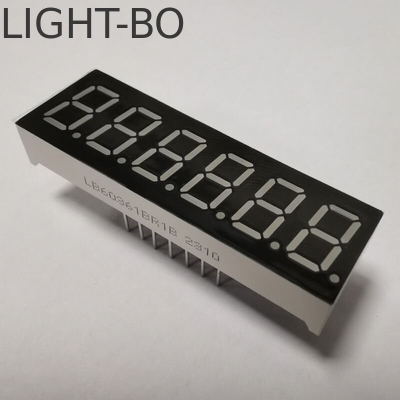

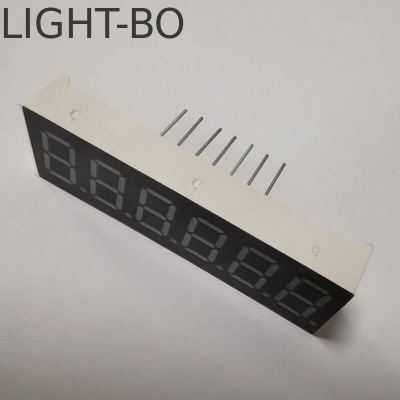

White 7 Segment LED Display 6 Digit 9.2mm Common Cathode for Digital Countdown Timer

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO9001&RoHS

Polarity:

Common Anode

Quality:

High Quality

Brightness:

High Brightness

Life Span:

100000 Hours

Pin Type:

DIP

Delivery Date:

7-15DAY

Scanning Mode:

Static Scan

Forward Voltage:

1.8-2.2V/LED

Forward Current:

5-10mA/LED

IP Rating:

IP54

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/day

Highlight:

Product Description

Digit height: 9.2mm (0.36-inch)
Outer dimensions:43.5 x 14.0 x 7 mm
Common anode
Made with white segments, black surface
Display Colour: Orange
Wavelength : 630-635nm
Luminous intensity : 50-60 mcd
Forward voltage: 1.8-2.2V
Emitting colors: red, blue, yellow green, pure green, amber, orange, yellow and white
High luminous intensity and reliability
Low power Consumption
Extremely low current
Low evelopment cost
Stable performance
Continuous uniform segments
Long lifetime
Easy assembly
IC compatible
Certificate: RoHS

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Orange -F
