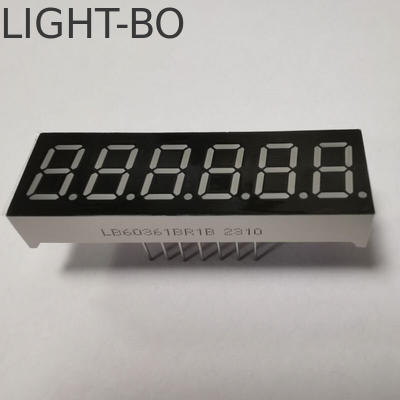

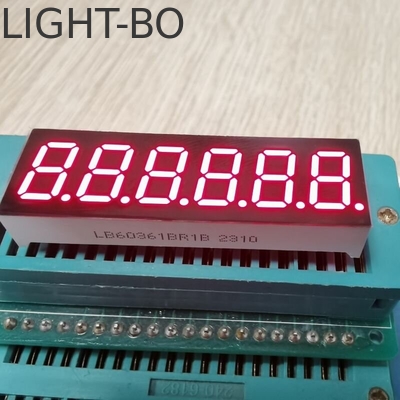

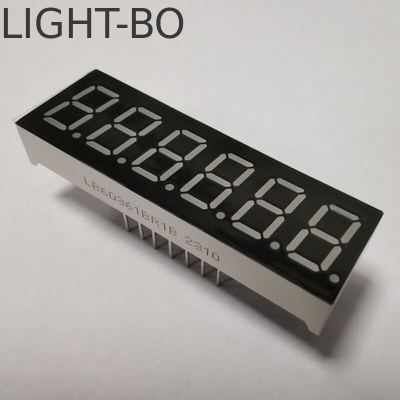

High bright Red 7 Segment LED Display 6 Digit 9.2mm Common Cathode for Digital Countdown Timer

High bright Red 7 Segment LED Display 6 Digit 9.2mm Common Cathode for Digital Countdown Timer

Brand Name:	LIGHT-BO
Model Number:	LB60362CJ1B
MOQ:	1000
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO9001&RoHS

Polarity:

Common Anode

Quality:

High Quality

Brightness:

High Brightness

Life Span:

100000 Hours

Pin Type:

DIP

Delivery Date:

7-15DAY

Scanning Mode:

Static Scan

Forward Voltage:

1.8-2.2V/LED

Forward Current:

5-10mA/LED

IP Rating:

IP54

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/day

Highlight:

6 Digit 7 Segment LED Display

High Bright 7 Segment LED Display

9.2mm 7 Segment LED Display

Product Description

Digit height: 9.2mm (0.36-inch)
Outer dimensions:43.5 x 14.0 x 7 mm
Common anode
Made with white segments, black surface
Display Colour: Super bright red
Wavelength:630-635nm
Luminous intensity : 50-60MCD
Forward voltage: 1.8-2.2V/led
Forward current:5-10mA/LED
Emitting colors: red, blue, yellow green, pure green, amber, orange, yellow and white
High luminous intensity and reliability
Low power Consumption
Extremely low current
Low evelopment cost
Stable performance
Continuous uniform segments
Long lifetime
Easy assembly
IC compatible

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm
