Green 4 Digit 7mm LED Display 7 Segment Common Anode for Temperature Controller

Name: Green 4 Digit 7mm LED Display 7 Segment Common Anode for Temperature Controller
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB40281IG1B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB40281IG1B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Surface:

White Epoxy Black Surface

Product Size:

32.1*10.1*5.8mm

Characteristics:

Raw Material With High Quality

Pixels:

0.28"( 7.mm)

Colours:

Various Colours

Item No:

LB40281IG1B-D

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Green 7 Segment LED Display

7mm 7 Segment LED Display

Temperature Controller 7 Segment LED Display

Product Description

Product Overview

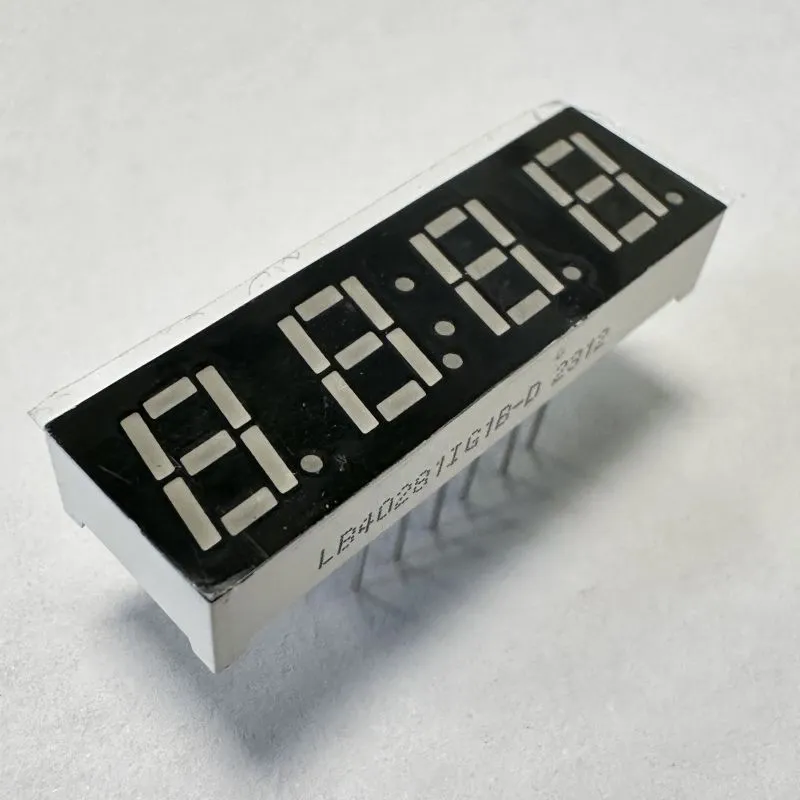

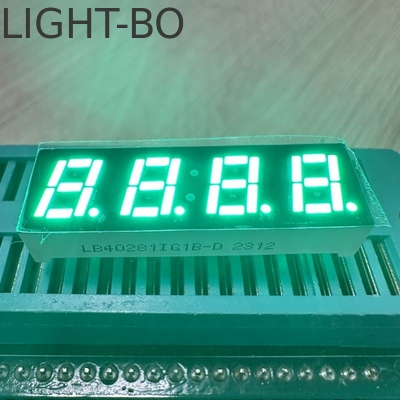

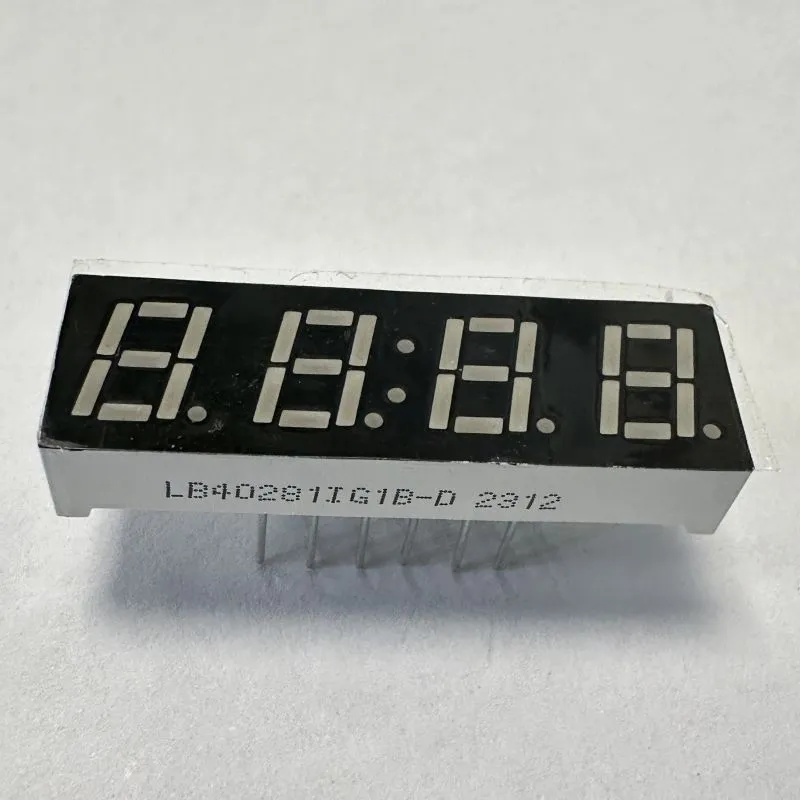

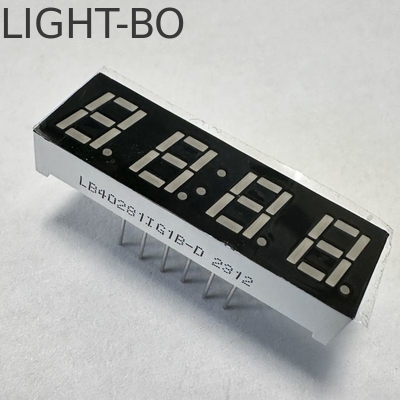

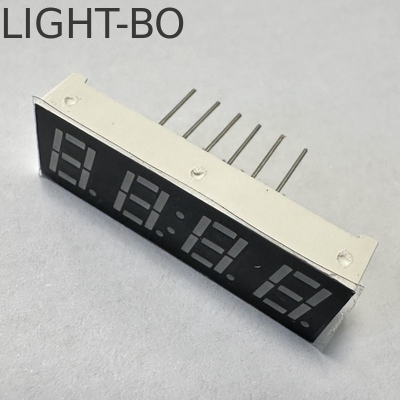

Pure Green 4 Digit 7mm LED Display 7 Segment Common Anode for temperature controller applications

Key Specifications

4 Digit 7 Segment LED Display
Character height: 0.28" (7mm)
Outer dimensions: 32.1 × 10.1 × 5.8mm
Polarity: Common anode
White epoxy black surface
Pure Green LED
Available colors: red, blue, green, white, amber, orange, yellow

Technical Parameters by Color Code

Yellow Green - J/JU

Dynamic and vivid yellow-green display for enhanced visual aesthetics

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Warm, inviting amber/yellow hue for attention-grabbing displays

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Vibrant orange for energetic and attention-commanding displays

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Vibrant red for displays that demand attention and leave lasting impressions

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Intensely luminous red for unmatched visibility and striking presence

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Refreshing crisp green for eco-friendly themes and natural appeal

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Cool vibrant blue for refreshing and modern aesthetic appeal

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Pristine white for unmatched clarity, brilliance and elegance

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Comprehensive performance metrics for exceptional reliability and optimal function

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) - ISO 9001:2015 certified manufacturer with over 15 years of excellence in OEM and ODM services since 2006. We provide premier, budget-friendly custom solutions that reduce expenses and enhance competitive advantages.

Applications

Our 7 Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot Matrix LED Displays integrate seamlessly into various applications including home appliances, temperature and humidity control systems, refrigerator controllers, thermostats, and HVAC systems.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are original manufacturers with more than 20 years experience in optoelectronic LED displays.

What is your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

What is your MOQ?

Our MOQ is 1000 pcs, but we can accept sample orders and small orders with quantity less than our MOQ.

Can I get samples for testing?

Yes, we can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.

What is your delivery time?

Delivery time is about 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to 7-10 days.

What are your payment terms?

We accept bank transfer, T/T, Western Union and PayPal for small amounts. Payment methods are negotiable.

Can you quote FOB prices?

Yes, we can quote prices based on incoterms EXW, FOB, CIF, DDP.

Can I negotiate prices?

Yes, we may consider discounts for bulk orders.

Can you do custom design products?

Yes, OEM & ODM services are available. We can customize sizes, LED colors and functional icons according to your requirements.

How do you ensure product quality?

We are ISO 9001 QMS certified manufacturers with over 20 years experience. We conduct twice 100% testing for all products before shipment.
