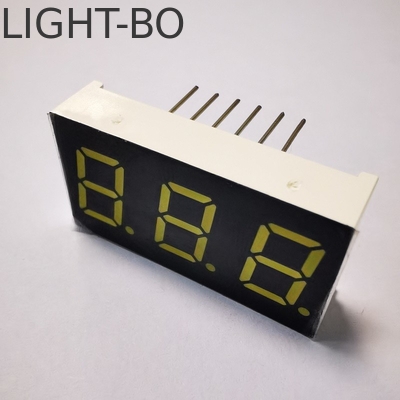

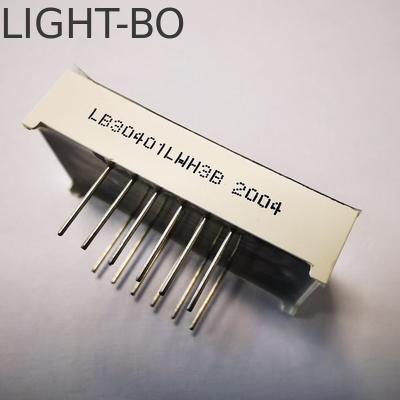

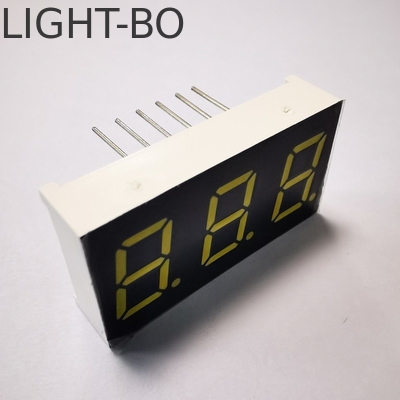

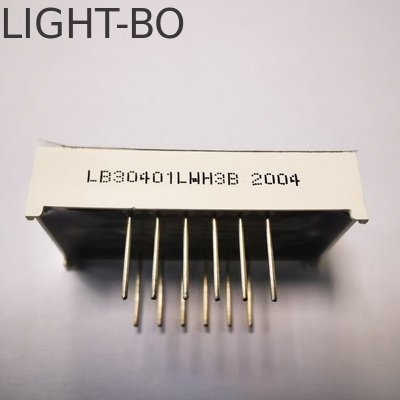

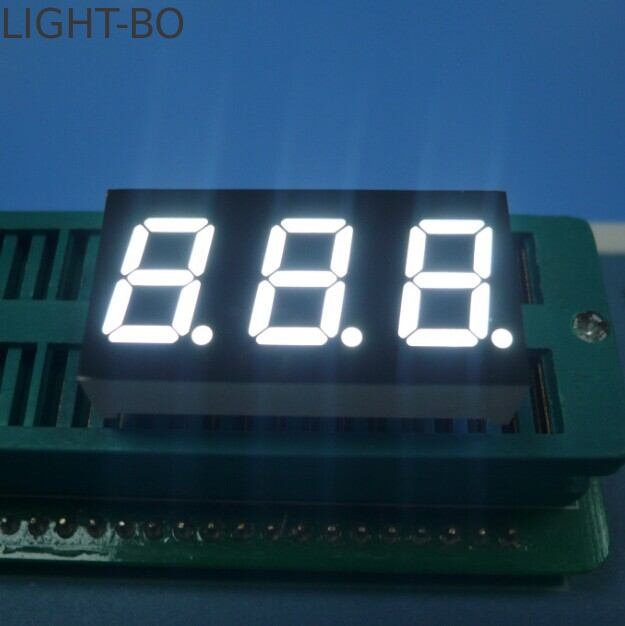

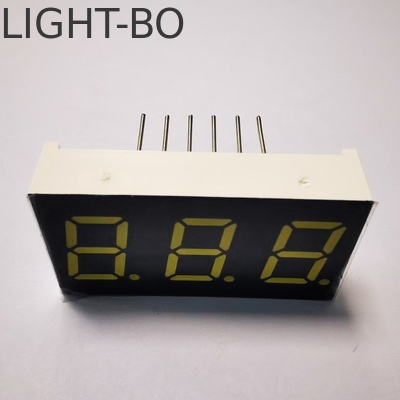

Triple Digit 0.4inch 7 Segment LED Display Common Cathode Ultra Bright White

Brand Name:	LIGHT-BO
Model Number:	LB30401LY3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Color:

Yellow

Digit Height:

10.16mm

Usage:

Outdoor And Indoor

Display Function:

Numeral 0-9

Brightness:

High Brightness

Life Span:

10 0000 Hours

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Days

Highlight:

0.4inch 7 Segment LED Display

Triple Digit 7 Segment LED Display

Common Cathode 7 Segment LED Display

Product Description

Triple Digit 0.4inch 7 Segment LED Display Ultra Bright White

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=10mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=10mA	100		140	mcd
Spectrum With Of Half Value	λ	If=10mA		20		nm
Color Temperature		If=10mA	6000		6500	K

LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

20% lower Vf than competitors at same brightness

Energy Star compliant power efficiency

Current requirements below 1mA (typical)

Laboratory-verified luminous uniformity

Interchangeable with industry-standard packages

Superior ambient light rejection technology

<0.5% failure rate in accelerated life testing

Outlasts conventional displays by 3x

Meet RoHS/REACH compliant

Applications:

Professional audio systems and control panels

Consumer electronics and household appliances

Alphanumeric display solutions

Digital media and entertainment devices

Universal digital measurement indicators (temperature/humidity/process variables) and so on
