Triple Digit Pure Green 7 Segment LED Display Common Anode

Brand Name:	LIGHT-BO
Model Number:	LB30401IG3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Usage:

Outdoor And Indoor

Tube Chip Color:

Pure Green

Display Function:

Numeral 0-9

Pixels:

9.20mm

Operating Temperature:

-45-80℃

Oem:

Yes

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Days

Product Description

Triple Digit Pure Green 7 Segment LED Display Common Anode

Product Description:

Digit height: 10.16mm

Wavelength: 515-525

Luminous Intensity: 120-160

Voltage: 2.5-3.0V

Current: 5-10

Outer dimensions: 30.1*16*7mm
Yellow Epoxy black surface

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:Pure Green -G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Compliant with global industrial dimensional standards

Consistent operational stability

Standardized footprint for drop-in replacement compatibility

High brightness achieved through advanced voltage control

Applications:

Numeric displays

Multimedia products

Commercial-grade numeric presentation systems

Multimedia exhibition technologies

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

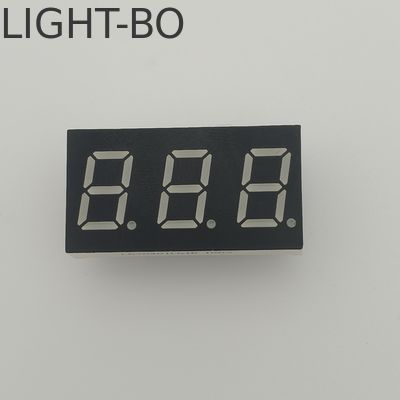

Triple Digit Pure Green 7 Segment LED Display Common Anode 0

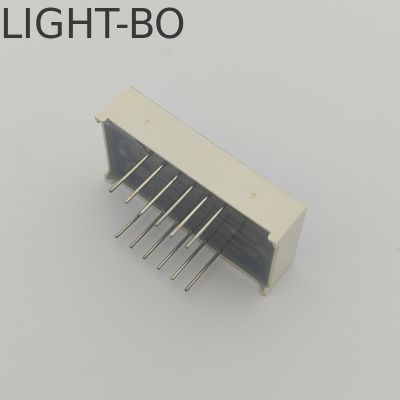

Triple Digit Pure Green 7 Segment LED Display Common Anode 1

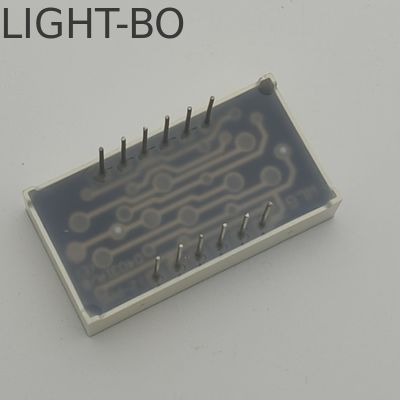

Triple Digit Pure Green 7 Segment LED Display Common Anode 2

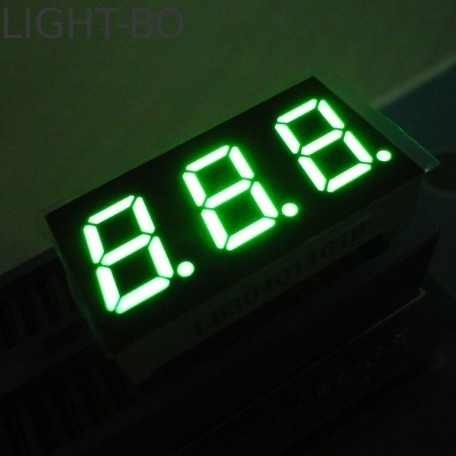

Triple Digit Pure Green 7 Segment LED Display Common Anode 3
