Common Anode Super Bright Red 14.2mm 5 Digit 7 Segment LED Display

name

Common Anode Super Bright Red 14.2mm 5 Digit 7 Segment LED Display

Brand Name:	LIGHT-BO
Model Number:	LB50563IR1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Features:

Low Power Consumption, High Brightness, Easy To Read

Life Time:

More Than 6 Years

Surface:

White Segments Black Surface

Package Dimension:

63*19*8mm

Pcb Polarity:

Common Anode

Life Span:

100000 Hours

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Common Anode 7 Segment LED Display

,

5 Digit 7 Segment LED Display

,

14.2mm 7 Segment LED Display

Product Description

Product Description

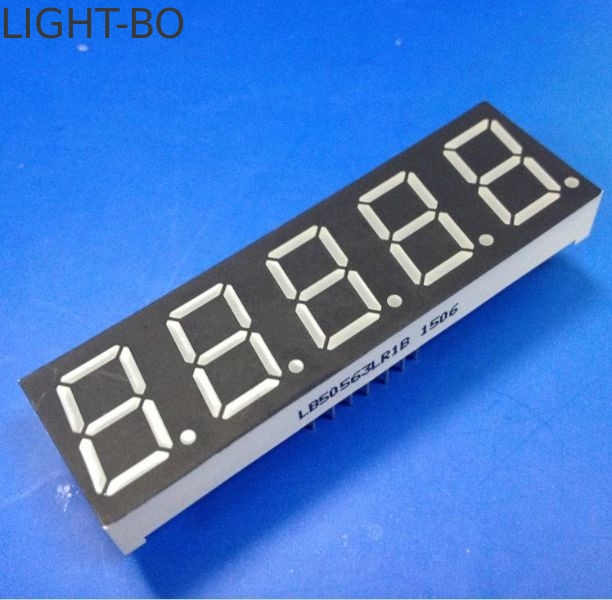

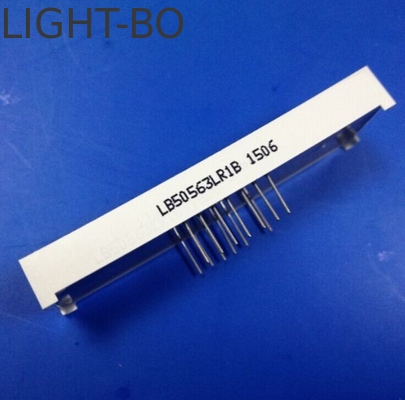

Super bright red 14.2mm 5 Digit 7 Segment LED Display Common Anode for digital indicator

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm

Specifications:
Display: 5 digit, 0.56 inch 7 segment led display
Charcter height: 14.2mm (0.56 inch)
Outer dimensions: 63*19*8mm
white segments black surface
With common anode
Emitting color: super bright red
Luminous intensity: 50-60 mcd
Forward voltage: 1.8-2.2V/led
Forward current:5-10mA/led
Colors: red, blue, yellow green, pure green, amber, orange and pure white
High luminous intensity and reliability
Low power consumption
Extremely low current
Stable performance
Long lifespan
Easy-to-assemble
IC compatible
Meet RoHS Compliant
Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.
