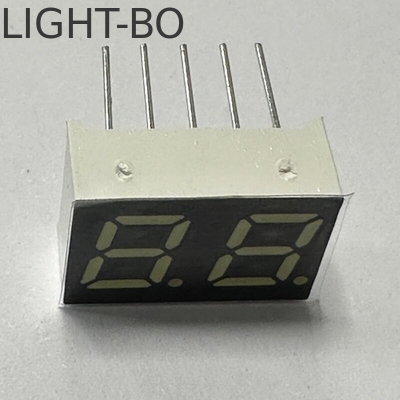

High Bright Red 2 Digit 7mm 7 Segment LED Display Common Cathode for Home Appliances

High Bright Red 2 Digit 7mm 7 Segment LED Display Common Cathode for Home Appliances

Brand Name:	LIGHT-BO
Model Number:	LB20281LC3B-D
MOQ:	1000pcs
Payment Terms:	T/T,Western Union
Supply Ability:	100000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN,CHINA

Features:

Competitive Price With High Quality

Display Type:

7 Segment

Polatity:

CC & CA

Pcb Polarity:

Common Anode

Oem:

Yes

Led Digit:

One /1

Performance:

High

Screen Dimension:

Custom Made

Supply Ability:

100000pcs/day

Highlight:

Home Appliances 7 Segment LED Display

7mm 7 Segment LED Display

High Bright 7 Segment LED Display

Product Description

Product Description:

2 Digit 7 Segment LED Display

Character height: 0.28"( 7.mm)

Outer dimensions: 15*12*6.1mm

Polarity: Common Anode

Yellow Epoxy black surface

Ice Blue

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=20mA	100		140	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Color Temperature		If=20mA	6000		6500	K
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
