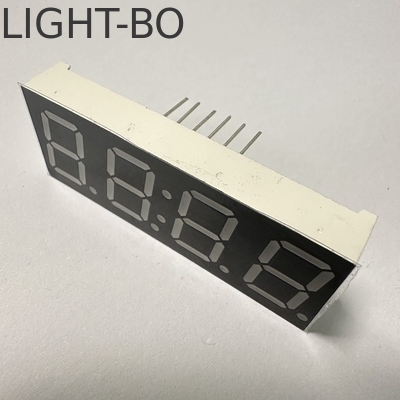

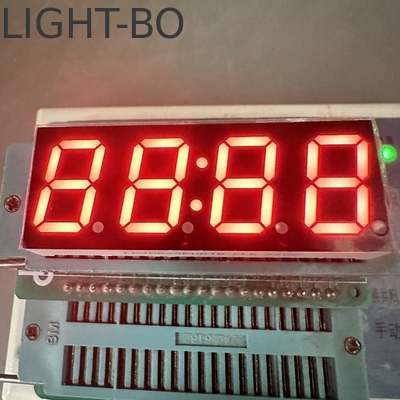

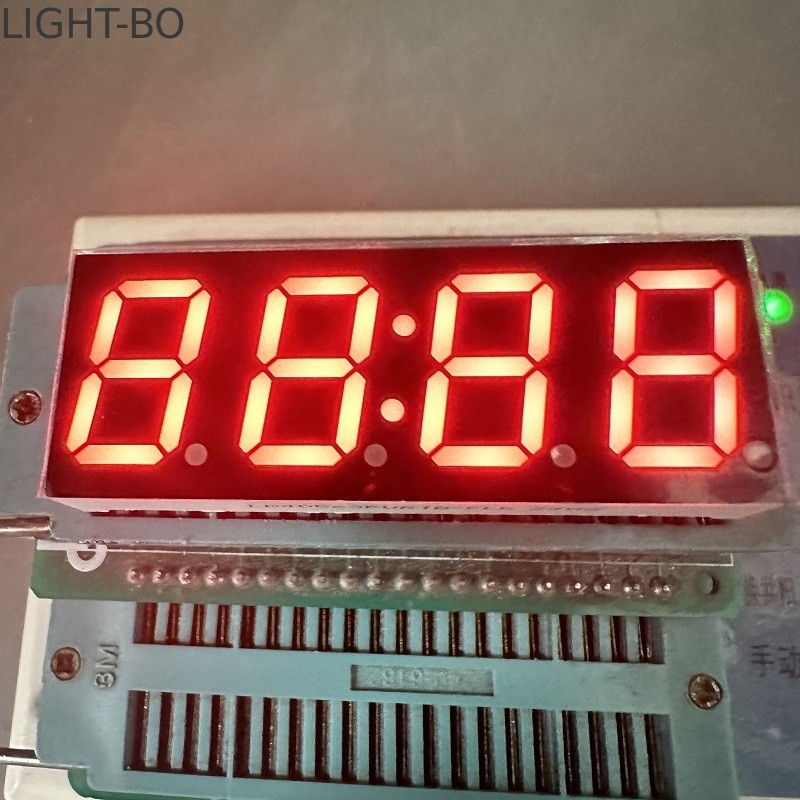

Ultra Bright Red Four Digit Seven Segment LED Display for Induction Cooker

Ultra Bright Red Four Digit Seven Segment LED Display for Induction Cooker

Brand Name:	LIGHT-BO
Model Number:	LB40563EUR1B-CLK
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	30000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Dimensions:

50 X 19 X 8 Mm

Product Size:

4 Digits Led Display

Life Span:

60000hours

Digital Height:

0.56 Inch

Surface Color:

White Segment Black Surface

Description:

Low Power Consumption,

Packaging Details:

EPE+Carton

Supply Ability:

30000pcs/days

Highlight:

Induction Cooker Seven Segment LED Display

Red Seven Segment LED Display

Ultra Bright Seven Segment LED Display

Product Description

Specification of Segment LED Displays

Product Name	Ultra Bright Red Four Digit Seven Segment LED Display for Induction Cooker	Other Optional
Part NO.	LB40563EUR1B-CLK	Can print your part number
Digit number	4digit	2digits,3digits, 4digits,5digits,6 digits
Digit height	0.56 inch	0.25,0.36,0.39....5.0(inch)
Color	Ultra Bright Red	White, blue,pure green, yellow-green, orange,etc.
Size	50 x 19 x 8 mm	Other size are supported
Polarity	Common Cathode	Common anode
Life span	60000hours
Free Samples	supported
Lead time for sample	5-7 working days	Tooling samples are 15-20 working days
Lead time for formal order	15-20 working days	According to order quantity
OEM&ODM	Support	Based on customer’s drawing or idea
LOGO printing	Support	Based on customer’s drawing or idea
MOQ	1000PCS	Can accept 100-500pcs for first order

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.5		3.0	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	120		160	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	515		525	nm

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		573	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Feature of Segment LED Displays

-- White segment Black surface

-- High luminous intensity

-- Low current operation

-- Stable performance

-- Continuous uniform segments

-- Easy mounting on PCB

-- IC compatible

-- RoHS compliant

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.

Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

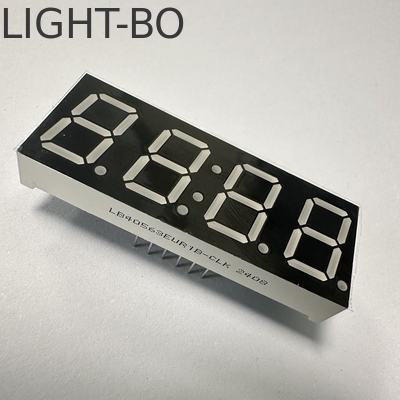

Ultra Bright Red Four Digit Seven Segment LED Display for Induction Cooker 1
