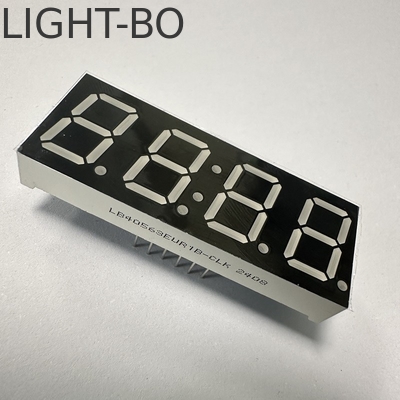

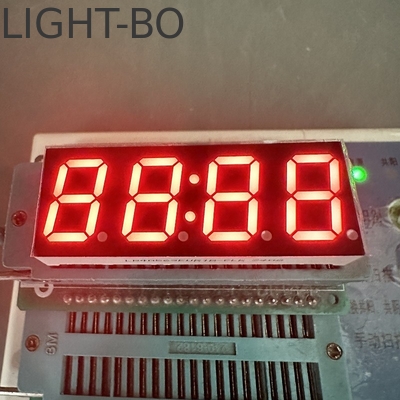

4 Digit 7 Segment Common anode LED Display Ultra Red for Induction Cooker

4 Digit 7 Segment Common anode LED Display Ultra Red for Induction Cooker

Brand Name:	LIGHT-BO
Model Number:	LB40563BUR1B-CLK
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	30000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Features:

Low Power Consumption, High Reliability, Easy To Use

Product Type:

Four Digits Led Display

Digital Height:

0.56"

Surface Color:

Black And White

Package Dimensions:

50*19*8mm

Life Time:

More Than 3 Years

Packaging Details:

EPE+Carton

Supply Ability:

30000pcs/days

Highlight:

Ultra Red 7 Segment LED Display

4 Digit 7 Segment LED Display

Induction Cooker 7 Segment LED Display

Product Description

Specification of Segment LED Displays

Product Name	Ultra Bright Red Four Digit Seven Segment LED Display for Induction Cooker	Other Optional
Part NO.	LB40563BUR1B-CLK	Can print your part number
Digit number	4digit	2digits,3digits, 4digits,5digits,6 digits
Digit height	0.56 inch	0.25,0.36,0.39....5.0(inch)
Color	Ultra Bright Red	White, blue,pure green, yellow-green, orange,etc.
Size	50198 mm	Other size are supported
Polarity	Common Anode	Common Cathode
Life span	60000hours
Free Samples	supported
Lead time for sample	5-7 working days	Tooling samples are 15-20 working days
Lead time for formal order	15-20 working days	According to order quantity
OEM&ODM	Support	Based on customer’s drawing or idea
LOGO printing	Support	Based on customer’s drawing or idea
MOQ	1000PCS	Can accept 100-500pcs for first order

Feature of Segment LED Displays

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Application of Segment LED Displays

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.5		3.0	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	120		160	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	515		525	nm

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		573	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃
