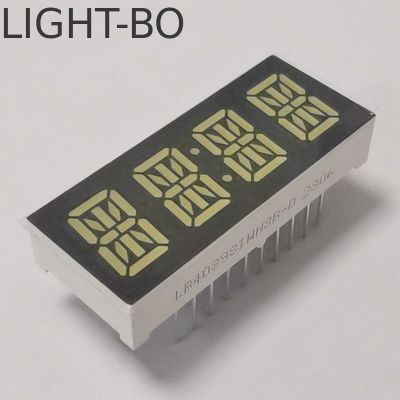

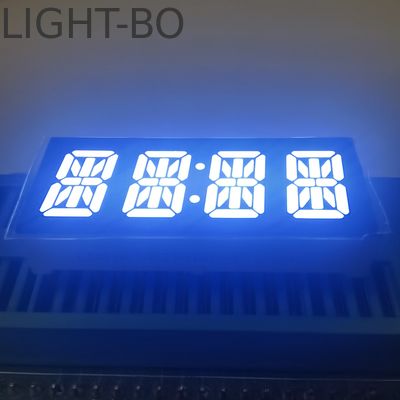

4 digit 0.39inch Common Cathode 14 Segment Ultra Bright White LED Clock Display

4 digit 0.39inch Common Cathode 14 Segment Ultra Bright White LED Clock Display

Brand Name:	LIGHT-BO
Model Number:	LB40398LWH3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Used:

Digital Display Screens, Message Boards,Information

Lifespan:

600000hours

Dimension:

36*15*7MM

Digit Height:

0.39 "

Raw Material:

Plastic,Epoxy ,LED Chip,PCB

Brightness:

High Brightness

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

Ultra Bright White LED Clock Display

14 Segment LED Clock Display

4digit 14 Segment LED Display

Product Description

Quick Detail of Segment LED Displays

1. We can supply you all kinds of 7 segment LED display:

--- Digit size: from 0.25" to 20"

--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment, 14 segment and 16 segment both available

3. Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color

4. Available surface color: black,gray or red

Specification of Segment LED Displays

Product Name	0.39 Inch 4 Digit 14 Segment LED Display	Other Optional
Part NO.	LB40398LWH3B-D	Can print your part number
Digit number	4 digit	1digit,2digits, 4digits,5digits,6 digits
Digit height	0.39 inch	0.25,0.36,0.39....5.0(inch)
Color	Bright White	blue,pure green, yellow-green, orange,etc.
Size	36157mm	Other size are supported
Polarity	Common Cathode	Common Cathode
Life span	80000hours
Free Samples	supported
Lead time for sample	5-7 working days	Tooling samples are 15-20 working days
Lead time for formal order	15-20 working days	According to order quantity
OEM&ODM	Support	Based on customer's drawing or idea
LOGO printing	Support	Based on customer's drawing or idea
MOQ	1000PCS	Can accept 100-500pcs for first order

Color:White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA				nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	ºC
Storage Temperature Range	Tstg	-40~+120	ºC
Solder Temperature(3 sec)	Th	260	ºC

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

Why choose us?

1. Best quality

- Three times of inspection on all products on production:

Step 1；raw material check

Step 2: process check and full inspection after chip&wire bonding

Step 3: full test before packing and partial check before shipment

2. Best price

- manufacturer

- best suppliers sources

- all products by oneself

3. Our customer

- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc

4. Company strength

- good quality&competitive price

- listed company

- factory of over 100 workers, with many auto-machines under advanced ERP management.

- management system: ISO 9001:2008,SGS
