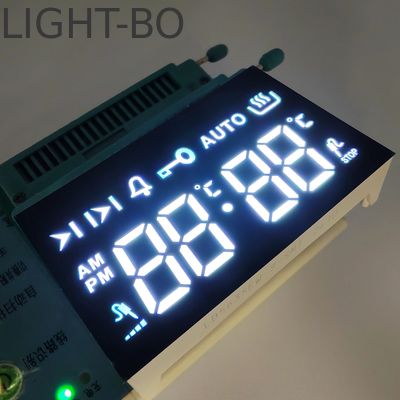

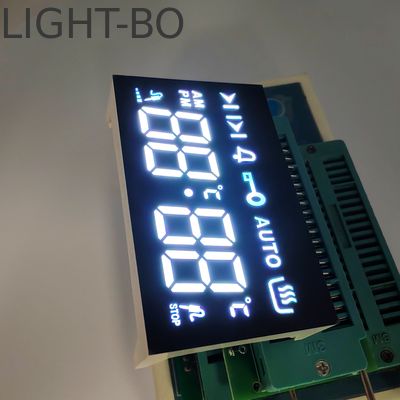

Ultra Bright White 4-Digit 7-Segment LED Display Common Cathode for Oven Timer

Ultra Bright White 4-Digit 7-Segment LED Display Common Cathode for Oven Timer

Brand Name:	LIGHT-BO
Model Number:	LB5635EW-S-SMT
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Feature:

4 Digit ,Wide Viewing Angle

Surface:

White Epoxy Black Surface

Light Points:

Elegant Design ,exquiste Craftmanship

Digital Height:

14.6mm (0.58 Inch)

Usage:

Indoor Or Outdoor

Life Time:

80,000 Hours

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

4 Digit 7-Segment LED Display

Common Cathode 7-Segment LED Display

Oven Timer 7-Segment LED Display

Product Description

Ultra Bright White 4-Digit 7-Segment LED Display Common Cathode for Oven Timer

Product descriptions:

Descriptions	4-Digit 7 Segment LED Display
Dimensions	*563515.3mm*
Digit height	14.6mm (0.58 inch)
Polarity	Common Cathode
Pin type	SMD
Emitting Color	Ultra bright white
Application	Oven Timer Control
Working Environment Temperature	+105ºC ~+120ºC
LED Colors	Available in Red,blue,green,white,amber,orange

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		573	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Product Features:
High luminous intensity
Low power consumption
Extremely low current
Stable performance
Wide viewing angle
Continuous uniform segments
Long lifespan
Fast heat-dissipation
IC Compatible
Easy assembly
RoHS/REACH compliant

Applications:
Widely used for digital oven timers,gas cookers, temperature controllers and digital indicators, home appliances, instrument panels and so on.
