products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
7 Segment LED Display
Created with Pixso.

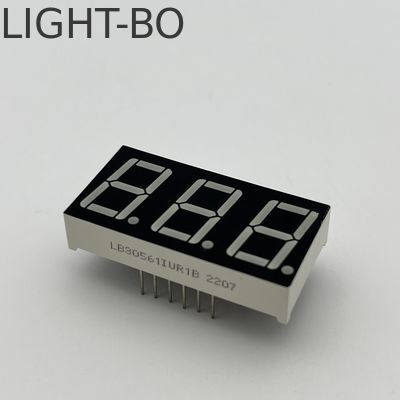

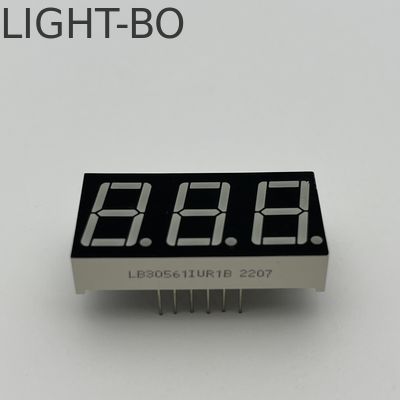

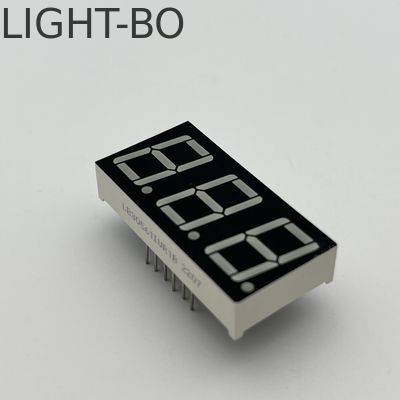

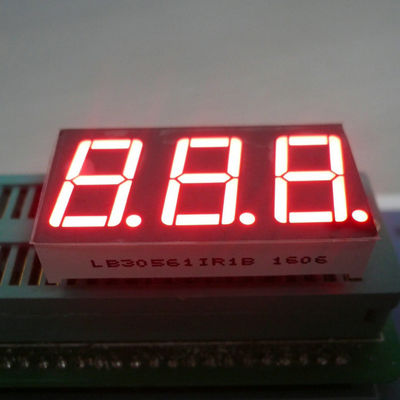

Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller

name

Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller

Brand Name: LIGHTBO
Model Number: LB30561LUR0B
MOQ: 1000
Price: Negotiate
Payment Terms: TT,Western Union
Supply Ability: 50000pcs/days
Detail Information
Product Description
Detail Information
Place of Origin:
SHENZHEN，CHINA
Certification:
ISO9001&ROHS
Material:
PCB,Epoxy,LED Chip,plastic
Usage:
Indoor/Outdoor
Application:
Kitchen Hood
Operating Temperature:
-40~105 ℃
Life Span:
80000hours
Forward Current:
20mA
Wavelength:
620-625nm
Packaging Details:
EPE+Carton
Supply Ability:
50000pcs/days
Highlight:

7 Segment 3 digit LED Display

,

Temperature Controller LED Display

Product Description

Ultra bright Red Surface Common Cathode LED Display 7 Segment 3 digit 14.2mm for Temperature Controller

Product Description:

LED DISPLAY 7 SEGMENT 3 DIGIT 14.2MM

Character height: 0.56"( 14.2mm)

Outer dimensions: 37.6*19*8 mm

Polarity: Common cathode

Forward voltage: 2.8-3.2V/led

Forward current:5-10mA/ led

Made with yellow epoxy, grey surface

Ultra bright WHITE

Emitting colours: red, blue, green, white, amber, orange and yellow

Product Feature:

  • Forward voltage (high luminous intensity output)
  • Low power consumption
  • Extremely low current
  • Luminous evenly distributed on each segment
  • Industrial standard size
  • Provides excellent reliability in bright ambient light
  • Stable performance
  • Long lifetime
  • Meet RoHS/REACH compliant
Applications
  • Audio equipment and instrument panels
  • Home electronic appliances
  • Numeric displays
  • Multimedia products
  • Digital indicators, temperature indicators, humidity indicators, process indicators
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
Electrical & Optical Characteristics
Pure Green (Code: G)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 180 mcd
Wavelength Dλ If=10mA 515 - 525 nm
Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.
Product Applications
Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 0
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.
Manufacturer Information
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.
Certifications
Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 1
Office and Factory Overview
Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 2 Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 3 Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 4 Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 5
Company Exhibitions
Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 6 Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 7
Shipping Services
Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 8 Common Cathode Ultra bright Red Surface LED Display 7 Segment 3 digit 14.2mm for Temperature Controller 9
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What are your main products?
A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.
Q4: Can I get samples for testing before placing an order?
A: Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.
Q5: How long is your delivery time?
A: Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
Q6: What are your payment terms?
A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Q7: Can you provide FOB prices?
A: Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
A: Please provide your email address or contact us directly through our website.
Q9: Can I negotiate prices?
A: Yes, we offer discounts for bulk orders.
Q10: How much are shipping charges?
A: Shipping costs depend on shipment size and method. We provide quotes upon request.
Q11: Do you offer custom design services?
A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: Will you keep my custom design confidential?
A: Yes, we will not share or sell your design to others without authorization.
Q13: What is the lead time for customized product samples?
A: Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.
Q14: What shipping methods do you use?
A: We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
A: As ISO 901 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
