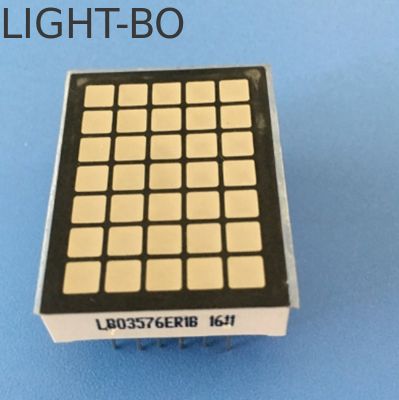

5× 7 High-Intensity White DOT Matrix

Brand Name:	LIGHT-BO
Model Number:	LB03576ER1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

LED Color:

Ultra Bright White

Forward Voltage:

2.6-3.0V/LED

Wavelength:

620-625nm

Outer Dimensions:

24*32*7 Mm

Packaging Details:

EPE+CARTON

Supply Ability:

20000 PCS/Day

Product Description

5× 7 High-Intensity White DOT Matrix

5*7 square dot matrix led display
Emitting dot diameter:3.5mm
Outer dimensions:24*32*7 mm
Connection:Row cathode column anode

Emitting color: Ultra Bright White
Wavelength: 620-625nm
IV: 70-90mcd
VF:1.8-2.2V/LED
Available in red,blue,yellow,green,orange,white and amber

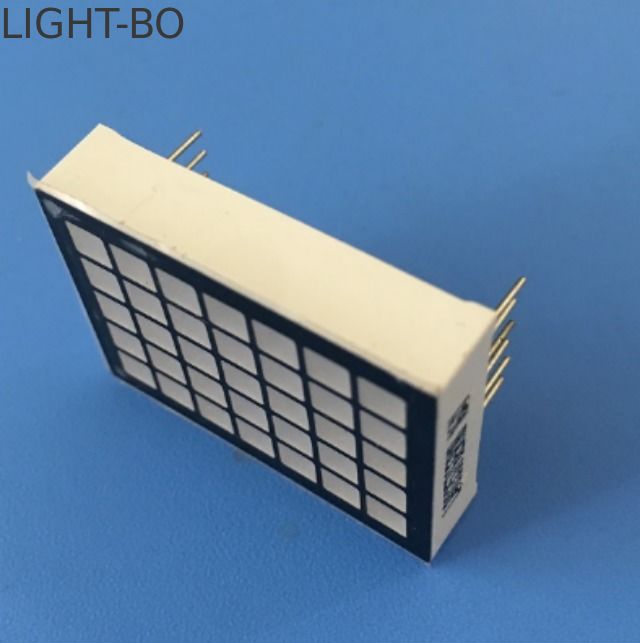

5× 7 High-Intensity White DOT Matrix 0

Emitting color: Ultra Bright White
Wavelength: 620-625nm
IV: 70-90mcd
VF:1.8-2.2V/LED
Available in red,blue,yellow,green,orange,white and amber

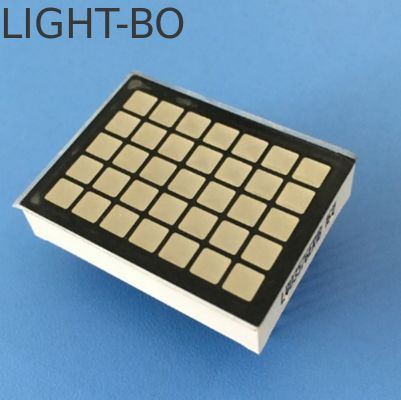

5× 7 High-Intensity White DOT Matrix 1

High luminous intensity low power consumption
Stable performance
Long lifetime
Continuous uniformity
Easy assembly
IC Compatible
RoHS directive-compliant

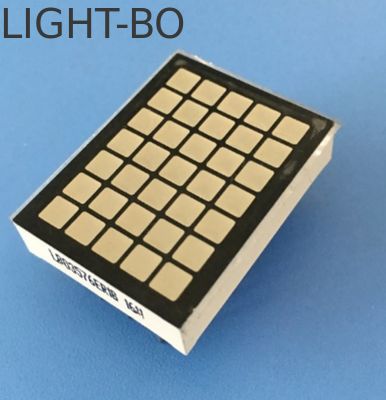

5× 7 High-Intensity White DOT Matrix 2

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Yellow Green- J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

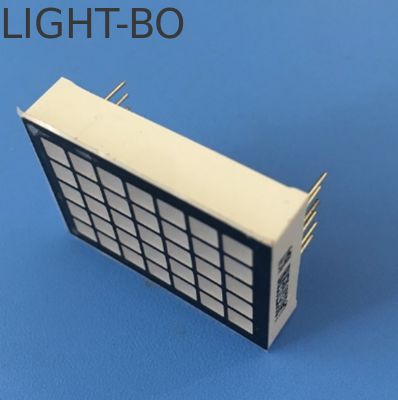

5× 7 High-Intensity White DOT Matrix 3

Applications:

Widely used for lift position indicators, elevator floor indicators and display screens,moving signs,message boards,home appliances and so on
