High bright Red 6-digit 0.36-inch 7 Segment LED Display, Widely Used for Instrument Panel

Name: High bright Red 6-digit 0.36-inch 7 Segment LED Display, Widely Used for Instrument Panel
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB-60362IC1B-#6498
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB-60362IC1B-#6498
MOQ:	1000
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO9001&RoHS

Polarity:

Common Anode

Emitting Color:

High Bright Red

Quality:

High Quality

Brightness:

High Brightness

Usage:

Indoor/Outdoor

Digit:

Digital Height:

0.36-inch

Pin Type:

DIP

Application:

Temperature Control

Tube Chip Color:

Full Color,Red,Green,white,Blue

Screen Dimension:

Customized Size,12.7x 7.6 X 7mm,50.4*19.0*8.1mm,113mm*29mm,28.8*40.8mm

Display Function:

Graphics,Animation,Video,numeral 0-9,temperature

Pixels:

10mm,7mm,25mm,8.0,10.20mm

Color:

Blue,yellow,green,red,white

Warranty:

2 Years,1 Year

Product Name:

Hot Video HD P6 7 Segment LED Display Screen,Led 7 Segment Led Display,Chestnuter Led Video Display Panel

Name:

LED Price Station Petrol Display,Small Seven Segment 3 Digits 0.2 Inch 7 Segment Smd Led Display,4 Digit 7 Segment Display,10 Inch 7 Segment Display LED

Polarity:

Common Anode,Common Cathode,C.C&C.A

Operating Temperature:

-35 ~ +85 ℃,-20 +85,-40~80 ℃,-45-80℃

Life Span:

100000hours,10 0000 Hours,Over 50000 Hours

Voltage:

DC12V,90~120V/220~240V (base On The Customers' Need)

Digit Height:

0.2 Inch,1.5,1.2,0.38,0.5

Led Chip:

Epistar,InGan,AlGanlp

Oem:

Yes

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/day

Highlight:

red 6-digit 7 segment LED display

0.36-inch 7 segment LED display

instrument panel LED display

Product Description

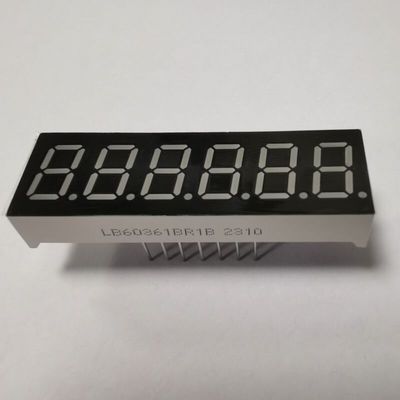

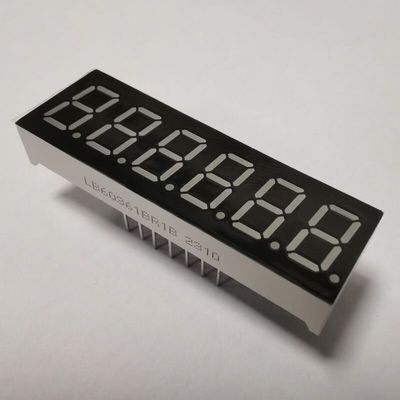

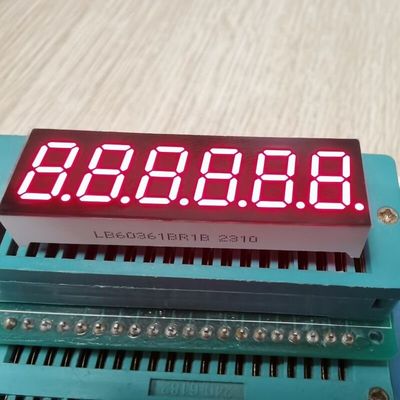

High Bright Red 6-digit 0.36-inch 7 Segment LED Display

Ideal for instrument panels and digital indicators with excellent visibility and reliable performance.

Key Specifications

Digit height: 0.36 inches (9.2mm)
Outer dimensions: 45.8 x 14mm
Polarity: Common anode
Available colors: Red, blue, yellow green, pure green, pure white, amber, orange
High luminous intensity with low current operation
RoHS Directive compliant

Product Overview

Segment LED Display Options

Digit sizes available: 0.25" to 20"
Digit numbers: 1, 2, 3, 4, 5 and 6 digits
Segment types: 7 segment, 14 segment and 16 segment
Available emitting colors: Red, Yellow-green, green, blue, yellow, pink, white, bi-color
Available surface colors: Black, gray or red

Product Features

White segment with black surface
High luminous intensity
Low current operation
Stable performance
Continuous uniform segments
Easy mounting on PCB
IC compatible
RoHS compliant

Applications

Audio equipment and instrument panels
Home electronic appliances
Numeric displays and digital indicators
Multimedia products
Bank exchange rate displays
LED clock displays
Gas station displays
Industrial equipment: ovens, test equipment, analytical instruments, process control systems
Temperature, humidity, and process indicators
Refrigerator controllers and thermostat indicators

Technical Specifications

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Electrical & Optical Characteristics - Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6	-	3.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	120	-	180	mcd
Wavelength	Dλ	If=10mA	515	-	525	nm

Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications & Facilities

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

A: Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

A: Yes, we offer discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping costs depend on shipment size and method. We provide quotes upon request.

Q11: Do you offer custom design services?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: Will you keep my custom design confidential?

A: Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for customized product samples?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.

Q14: What shipping methods do you use?

A: We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
