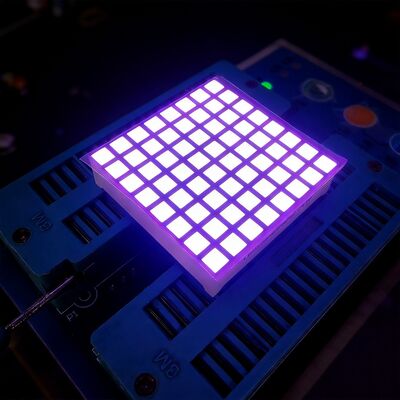

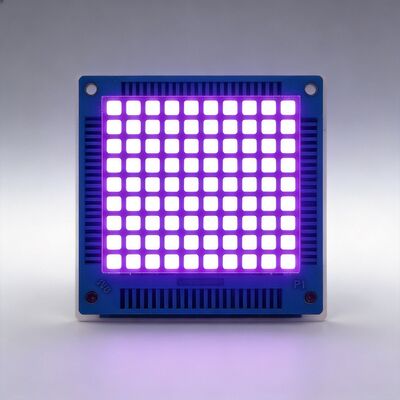

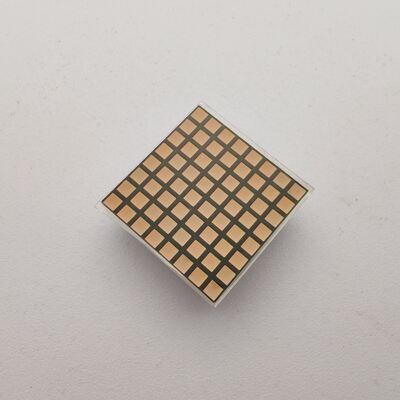

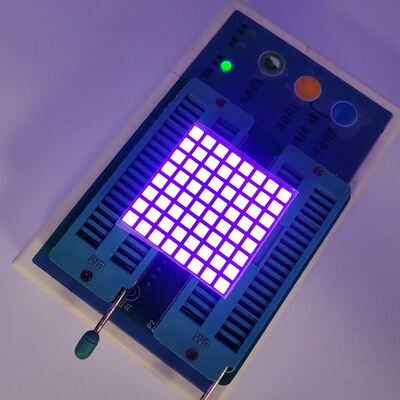

High-Visibility Purple 8x8 Dot Matrix LED Display with 3mm Emitting Dot Diameter and Long Lifetime for Elevators

High-Visibility Purple 8x8 Dot Matrix LED Display with 3mm Emitting Dot Diameter and Long Lifetime for Elevators

Brand Name:	LIGHTBO
Model Number:	LB03881BC3B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT,Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Life:

50000h

LED Chips:

Epistar

Display Function:

Video,Graphics,ANIMATION,text,photo

Usage:

Indoor,OUTDOOR,Semi-outdoor,Ourdoor And Semi-outdoor,Outdoor/indoor

Pixels:

10mm,6mm,16mm/10mm/8mm/6mm/5mm/4mm/3mm/2mm,32*32,85mm

Tube Chip Color:

FULL COLOR,Blue,White,RGB,Green

Brightness:

8500nits,7500cd/sqm,>1200,≥8000,1800 Cd/m2

Product Name:

Led Video Display Panel,pixel 4mm Led Display,full Color P5 High Definition LED Display For LED,8*8 Dot Matrix Led Display,P2 Indoor Panel

Color:

Full Color,RGB,1R1G1B

Pixel Density:

27777dots/sqm,4000 Dot/m*m,27777 Dots/sqm,62500dots/m2,43264dots/m2

Life Span:

100,≥100000 Hours,100000hours,000 Hours,Over 50000 Hours

Led Chip:

Cree/epistar/silan/opto,AlGanlp,Epistar,SMD3535,InGan

Emitting Color:

Blue,yellow,etc,RGB Full Color,green

Surface Color:

Gray Or Black,black/gray

Name:

Flexible Led Video Display,outdoor Advertising Led Display Screen,47.8x47.8mm High Intensity 1.9" Inch 8x8 Led Dot Matrix 8*8 Display

Dot Color:

Water Clear/white Diffused,Water Clear Or White,white Or Same As Emitting Color

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Product Description

High-Visibility Purple Dot Matrix LED Screen for Elevators

This 8×8 dot matrix LED display features a 3mm emitting dot diameter and compact 32×32×8mm size, designed specifically for lift indicator applications with high brightness and excellent visibility.

Key Specifications & Features

White epoxy black surface
Wavelength: 630-635nm/569-573nm
Luminous intensity: 50-60mcd
Forward voltage: 1.8-2.3V/led
Forward current: 5-10mA/led
High efficiency with low power consumption
Extremely low current operation
Low development cost
Big viewing angle vertically and horizontally
Stable performance
Long lifetime
IC Compatible
RoHS directive-compliant

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Technical Specifications by Color

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green - G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostats indicators, heating and cooling control systems, and more.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We can also accept sample orders and small orders with quantities less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days, depending on order quantity and raw materials. If you have an urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What are your terms of payment?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Details of payment methods are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please let us know your email address or contact us from our website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will provide the charge to you as requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only and not show it to anyone else?

A: Yes, we will not show or sell it to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

A: We usually ship goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can also choose other methods that work best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years of experience. We conduct twice 100% testing for all our products before shipment.
