| Brand Name: | LIGHTBO |
| Model Number: | LB60361BY3B |
| MOQ: | 1000PCS |
| Price: | negotiable |
| Payment Terms: | TT in advance& Western Union |
| Supply Ability: | 50000PCS/Day |
Electronic Scales 7 Segment LED Display 6 Digit 0.36 Inch Ultra Bright Amber
Product Descriptions:
Character height: 13.4mm (0.52 inches)
Outer dimensions: 43.5 x 14.0 x 7mm
Polarity:Common anode/cathode
Made with white segments, black surface
Emitting colors: red, blue, yellow green, pure green, amber, orange, yellow and white
Product Features:
RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted
Applications:
Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.
Why choose us?
1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.
8. If our products have any problem , we will send free in the next order if it is our mistake.
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Code:Y-Super Bright Amber
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 1.8 | 2.5 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 70 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 30 | nm | ||
| Wavelength | Dλ | If=20mA | 585 | 595 | nm | |
| LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃ | ||||||

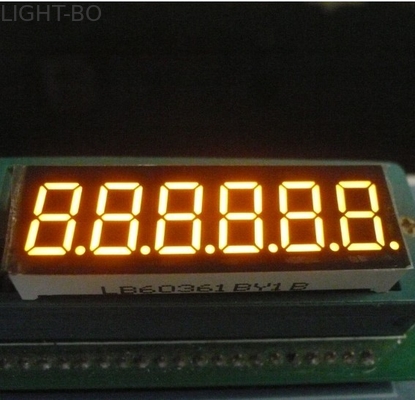

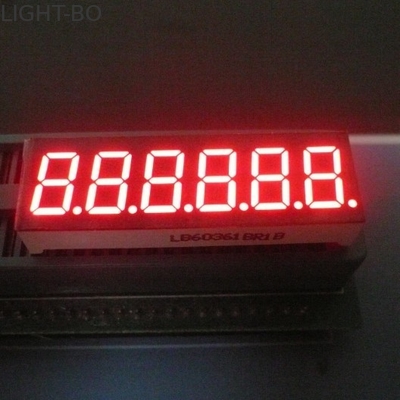

Product Pictures:
