High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board

High Luminous Flexible 0.7inch 5x7 Dot Matrix LED Display Screen for Message Board

Brand Name:	LIGHTBO
Model Number:	LB02571EWH3B
MOQ:	1000PCS
Price:	Negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

led message display

large led matrix display

Product Description

High Luminous Flexible 0.7inch 5×7 Dot Matrix Display LED Screen

Professional LED display screen designed for message boards and digital display applications with high brightness and excellent performance characteristics.

Quick Details

0.7 inch (1.9mm) 5×7 dot matrix LED display
Ultra bright white illumination
Row Anode Column Cathode configuration

Product Description

Dot matrix LED displays are engineered with advanced features:

High brightness using high luminous LED dice
Low current operation and power consumption
Stable quality and consistent performance
Excellent dot uniformity and wide viewing angle
Fast heat dissipation and long lifespan
Easy mounting on PC boards and sockets
IC compatible and RoHS compliant

Available colors: red, green, blue, white, amber, orange, bi-color, RGB. Character heights range from 17.8mm (0.7") to 106.5mm (4.2").

Key Specifications

Package Dimensions	12.7 × 17.8 × 6.3 mm
Face Color	Yellow Segments Black Face
Connection	Row Anode Column Cathode
Color	Pure White
(X,Y)	0.29-0.33
IV	120-140mcd/dot
Forward Voltage (VF)	3.0-3.6V
Forward Current	20mA
Reverse Voltage	5V

Key Features

High luminous intensity with low power consumption
Large viewing angle and stable performance
Continuous uniform dots and long lifetime
Easy assembly and IC compatibility
RoHS directive compliant
Fast heat dissipation for lift position indicators

Applications

Home appliances and instrument panels
Digital displays and display screens
Lift position indicators
Elevator floor number indicators
Set-top boxes, clock displays, digital timers
Numeric displays and similar applications

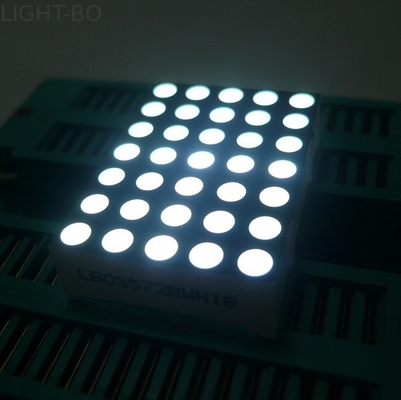

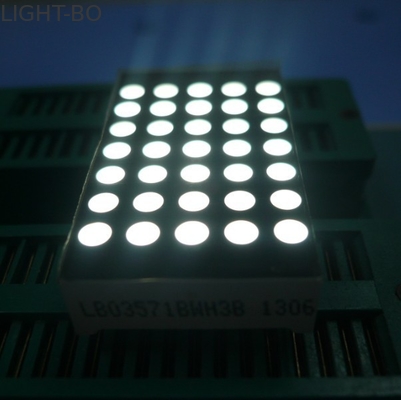

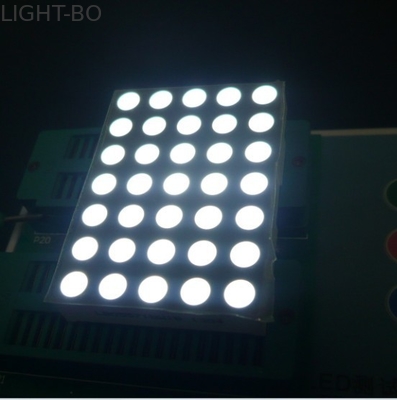

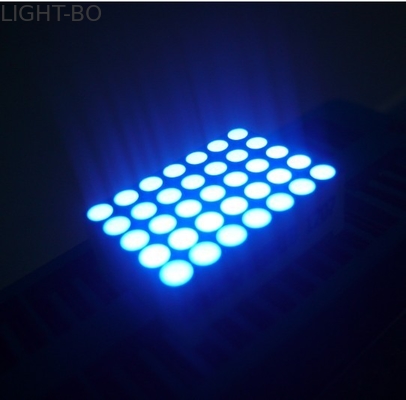

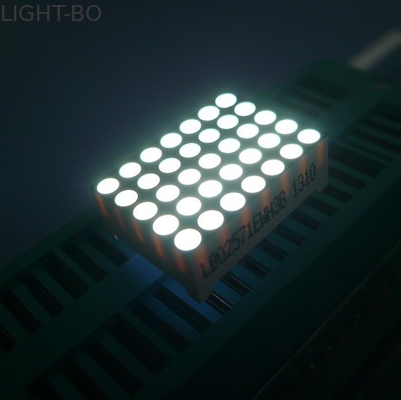

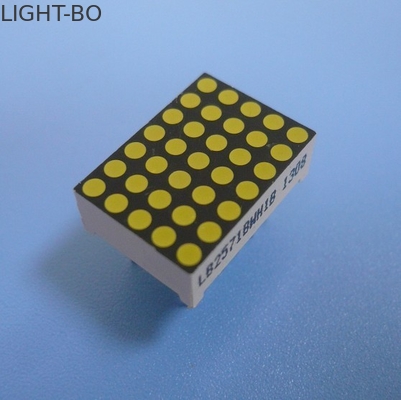

Product Images

Technical Specifications

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature (3 sec)	Th	260	℃

Competitive Advantages

Stable quality with prompt delivery
Long lifespan and cost competitive pricing
Excellent pre-sale and after-sale service
No minimum order quantity (MOQ)
Various colors available
OEM / ODM services acceptable

Manufacturing Capabilities

Company Exhibitions

Certifications

Shipment Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Can I get samples for testing?

A: Yes. We can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; according to order quantity and raw materials. Urgent orders can be ready within 7-10 days.

Q6: What are your terms of payment?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Details are negotiable.

Q7: Can you quote FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us from our website directly.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on shipment size and method. We will provide charges as requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED color and functional icons.

Q12: If I send my design, can you make it exclusively for me?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What is the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and approval.

Q14: What are the shipping methods?

A: We ship by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can choose preferred methods.

Q15: How do you ensure product quality?

A: We are ISO 9001 QMS certified with over 20 years experience. We conduct twice 100% testing before shipment.
