Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof

Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof
Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof

Large Image :  Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof Get Best Price

Product Details:
Place of Origin: SHENZHEN,CHINA
Brand Name: LIGHT-BO
Certification: SGS
Model Number: LB03574BY1B
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 20000pcs/day
Detailed Product Description
Outer Dimension: 22x30x10mm Emitting Dot Diameters: 3.39mm
Colour: Ultra Bright Yellow
High Light:

led message display

,

large led matrix display

Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof





Product descriptions:


Outer dimension: 22x30x10mm
Emitting dot diameters: 3.39mm
Colour: ultra bright yellow
Surface colour: black
Polarity: CC/CA
Emitting colour: available in red, blue, green, white, amber, orange

Product features:


High-efficiency
Low-power consumption
Extremely low current
Big viewing angle vertically and horizontally
Stable performance
Good consistency
Longe lifespan
Easy assembly
IC compatible
Meet RoHS compliant

Applications:


Suitable for digital display and display screen, elevator floor indicators, lift position indicators, hall position indicators and more



Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.

2. Experienced staffs to answer your inquiries in fluent English.

3. Providing OEM and ODM service for more than 10 years.

4. Protection of your sales area, ideas of design and all your private information.

5. No matter big order or small order, we will serve you with best quality and best service.

6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.



Data Sheet



Absolute Maximum Ratings(Ta=25℃)
Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:Y-Ultra Bright Yellow
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 70   80 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 585   595 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃

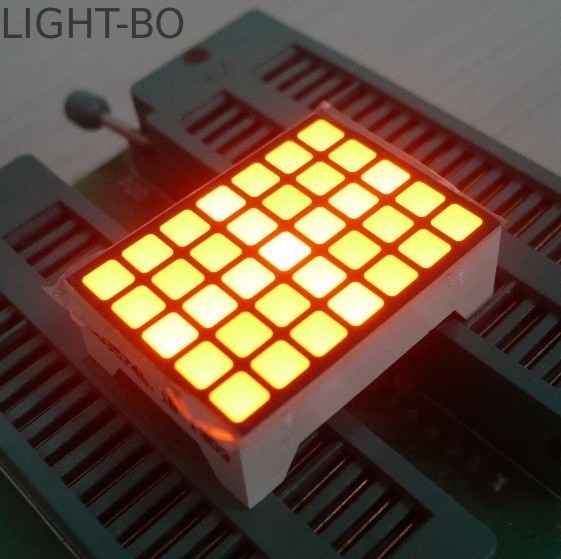

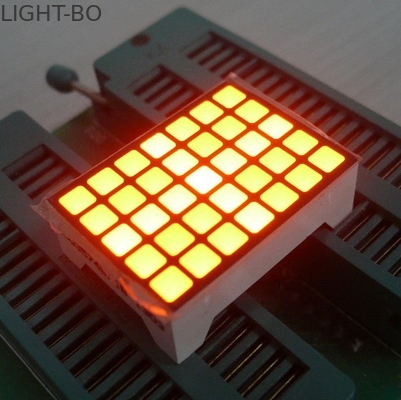

Product Picture:



Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof 0

Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof 1

Yellow 14 Pins Square LED Matrix Screen , 5x7 LED Matrix Waterproof 2
