Product Details:
|
| Dimensions: | 26.5*38*8.5mm | Digit Height: | 1.2ch(30.5mm) |
|---|---|---|---|
| Polarity: | Common Cathode | LED Color: | Ultra Bright Blue |
| Wavelength: | 462-465nm | Luminous Intensity: | 80-100 |
| Forward Voltage: | 2.8-3.3V/led | Forward Current: | 12-15mA |
| High Light: | sixteen segment display,16 segments display |
||

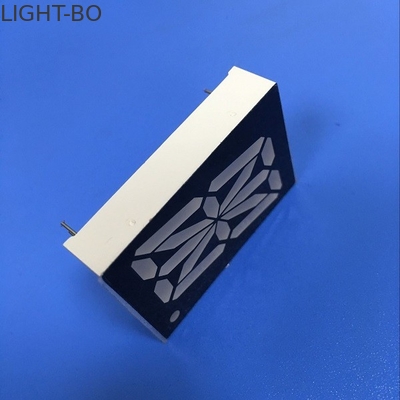

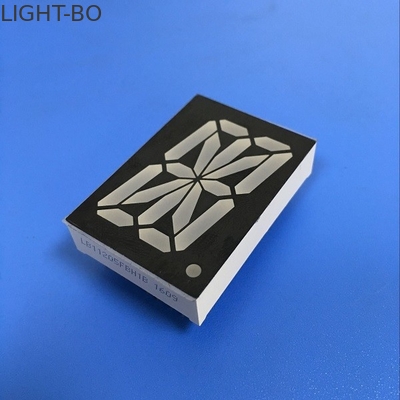

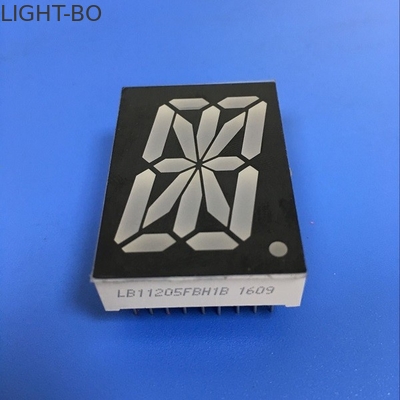

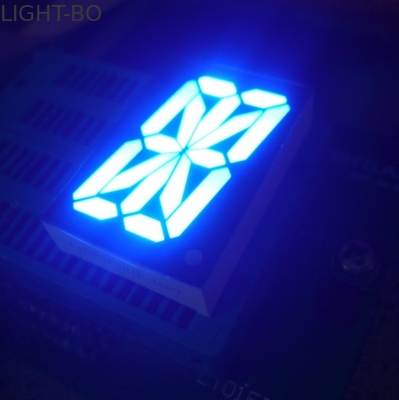

Long Lifetime 1.2 Inch 16 Segment Led Display Ultra Blue Lift Position Indicator
Dimensions :26.5*38*8.5mm
Digit height: 30.5mm (1.2inch)
Common cathode
white epoxy black surface with fim
Ultra bright blue
Wavelength:462-465nm
Luminous intensity: 80-100mcd/led
Forward voltage: 2.8-3.5 V/ led
Recomanded Forward current : 10-15mA
High luminous intensity
Low power cumsuption
Stable perforance
Continuous uniform segments
Big viewing angle
Longe lifetime
IC Compatible
Meet RoHS Compliant
Application : instrument panel ,digit numeric indicator, digital read-out display and so on .
