5x7 Dot Matrix LED Display
Created with Pixso.

4.9mm Square 5 x 7 Dot Matrix Display Wide Viewing Angle For Moving Signs

4.9mm Square 5 x 7 Dot Matrix Display Wide Viewing Angle For Moving Signs

Brand Name: LIGHTBO
Model Number: LB05574CG1B
MOQ: 1000PCS
Price: Negotiable
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Name:
Pure Green Square Dot Matrix Led Display
Description:
Wide Viewing Angle
Application:
Video Display Board/ Information Display Screen
Advantage:
OEM & ODM Acceptable
Wavelength:
515-525nm
Luminous Intensity:
120-140mcd/led
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

5x7 dot matrix display

,

5x7 led dot matrix display

Product Description

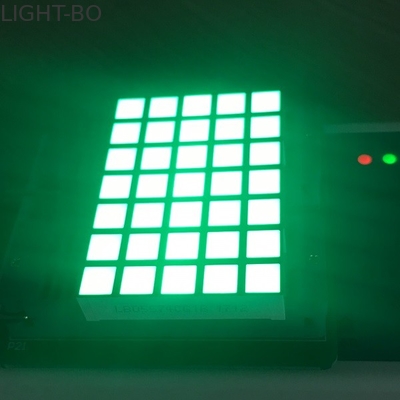

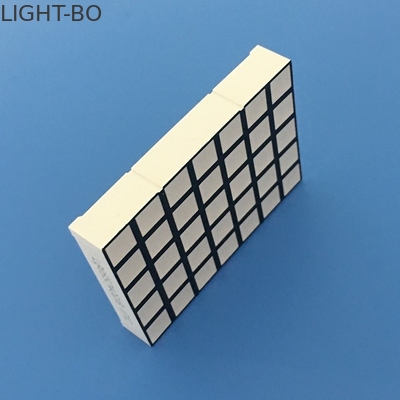

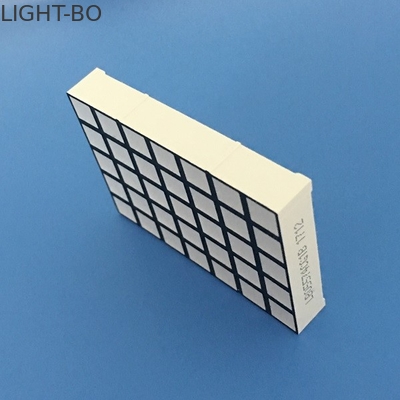

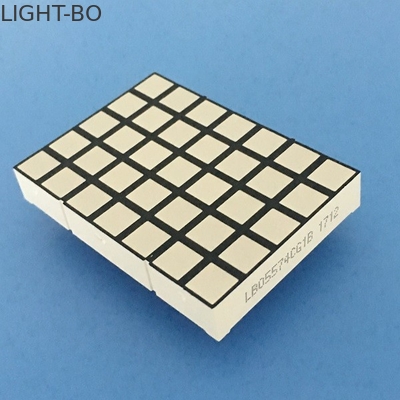

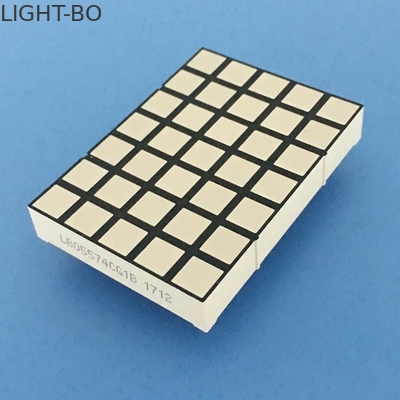

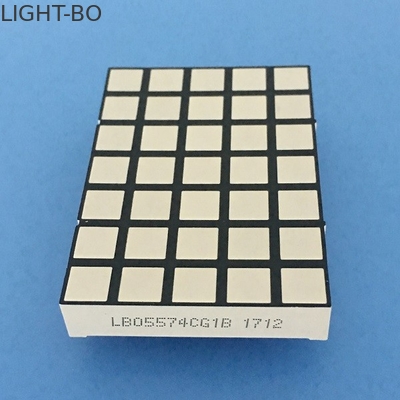

High brightness Pure Green 4.9mm 5 x 7 Square Dot Matrix Led Display for moving signs

Ultra red 4.9 mm 5 x 7 square dot matrix LED display
Dot diameter: 4.9mm
Dimensions: 37.8 x 53.1x10mm
Row cathode Column anode


Pure green 4.9mm 5 x 7 square dot-matrix LED display row cathode column anode for moving signs









Dot diameter: 4.9mm


Dimensions: 37.8 x 53.1 x 10 mm



White diffused epoxy black face



Row cathode column anode



Emitting color : Pure green



Wavelength: 515-525nm



Luminous intensity: 120-140mcd/led



Forward voltage : 2.8-3.5V/LED



Recommanded forward current :10-15mA




White dots black face


Emitting colors: available in red, blue, yellow green, pure green, pure white, orange, yellow and amber



With high-efficiency and low-power consumption


Extremely low-current


Low-development cost


Big viewing angle vertically and horizontally


Stable performance


Good consistency

Long lifetime


Easy assembly


IC Compatible


Meet RoHS Compliant


Application:


Suitable for digital displays and display screens,elevator postion indicators,lift floor indicators ,moving signs, message boards and so on.
