5x7 Dot Matrix LED Display
Created with Pixso.

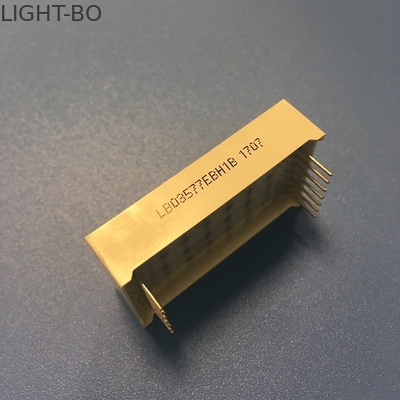

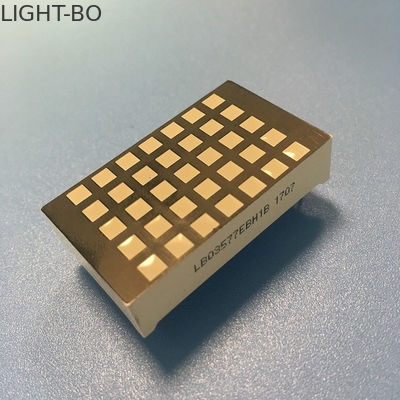

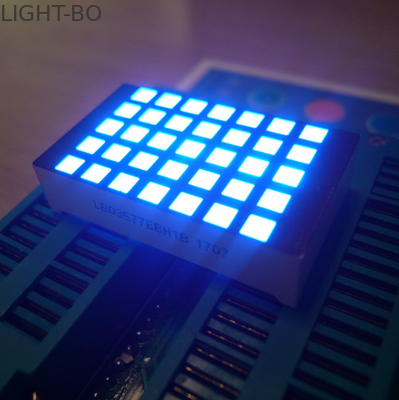

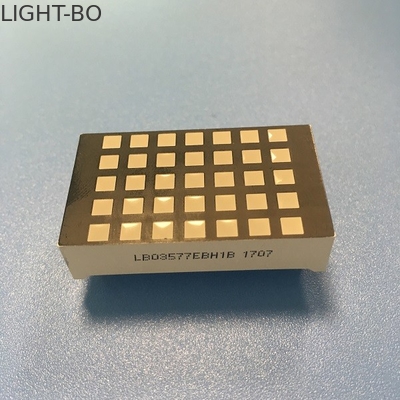

Ultra Blue 3mm 5X7 Dot Matrix Led Display Row Cathode For Elevator Position Indicator

name

Ultra Blue 3mm 5X7 Dot Matrix Led Display Row Cathode For Elevator Position Indicator

Brand Name: LIGHTBO
Model Number: LB03577EBH1B
MOQ: 1000PCS
Price: NEGOTIABLE
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
DOT Type:
5*8 Suqare Dot Matrix
Outer Dimensions:
22.8*39*8.5mm
Polarity:
Row Cathode Column Anode
LED Color:
Ultra Bright Blue
Wavelength:
462-465nm
Luminous Intensity:
80-100mcd
Forward Voltage:
2.8-3.3V/led
Forward Current:
12-15mA/LED
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

5x7 dot matrix display

,

5x7 led dot matrix display

Product Description

Ultra Blue 3Mm 5X7 Dot Matrix Led Display Row Cathode For Elevator Position Indicator





Dot diameter: 3mm


Dimensions: 22.8*39*8.5mm



White diffused epoxy black face



Row cathode column anode



Emitting color : ultra bright blue



Wavelength: 462-465nm



Luminous intensity: 80-100mcd/led



Forward voltage : 2.8-3.3V/LED



Recommanded forward current :12-15mA


White dots black face


Emitting colors: available in red, blue, yellow green, pure green, pure white, orange, yellow and amber



With high-efficiency and low-power consumption


Extremely low-current


Low-development cost


Big viewing angle vertically and horizontally


Stable performance


Good consistency

Long lifetime


Easy assembly


IC Compatible


Meet RoHS Compliant


Application:


Suitable for digital displays and display screens,elevator postion indicators,lift floor indicators ,moving signs, message boards and so on.
