Ultra White Custom LED Display , 4 Digit Seven Segment Display Common Anode For Oven Timer

Ultra White Custom LED Display , 4 Digit Seven Segment Display Common Anode For Oven Timer

Brand Name:	LIGHTBO
Model Number:	LB40569AWH3S
MOQ:	1000PCS
Price:	negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Package Dimensions::

58.0 X 19 X 13.5mm

Character Height::

14.2mm (0.56")

Polarity::

Common Anode

Colour::

Ultra Bright WHITE

X / Y:

0.29-0.31

Luminous Intensity:

80-100mcd

Forward Voltage:

2.8-3.3V/led

Forward Current:

12-15mA/led

Operating Temperature:

120C

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

7 segment numeric display

low power 7 segment display

Product Description

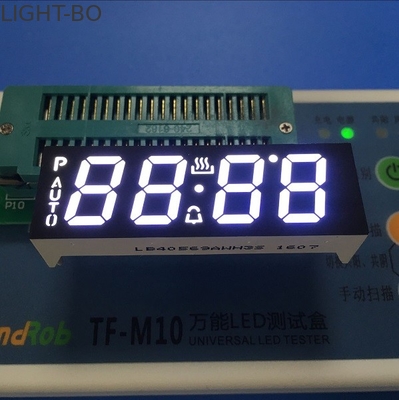

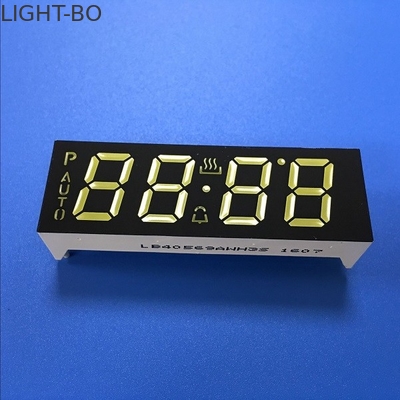

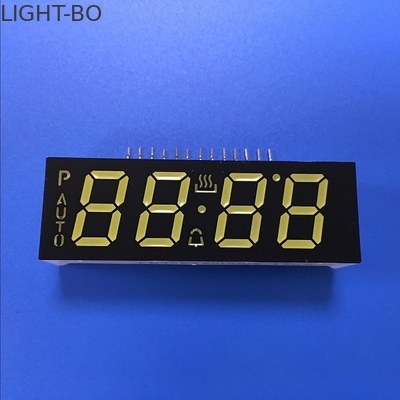

Ultra white Custom LED Display , 4 Digit 14.2mm 7 segment For oven timer

Product descriptions:
Package dimensions: 58.0 x 19 x 13.5mm
Character height: 14.2mm (0.56")
Face colour: black face, white segments with film
Polarity: common anode
Working temperature: max + 120℃
Colour: ultra bright white
X / Y: 0.29-0.31
Luminous intensity: 80-100mcd
Forward voltage: 2.8-3.3V/led
Emitting colours: available in red, blue, green, white, amber, orange

Ultra White Custom LED Display , 4 Digit Seven Segment Display Common Anode For Oven Timer 0

Product features:
High luminous intensity
Low power consumption
Stable performance
Continuous uniform segments
Big viewing angle
Long lifetime
Meet RoHS Compliant
Applications:
Ideal for home appliances, built-in oven control, multifunction digital oven timer control

Code:W-Ultra Bright Blue

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.3	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	30			V
Luminous Intensty(Per dice)	Iv	If=20mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=20mA		30		nm
X/ Y	Dλ	If=20mA	0.29		0.31
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+120	℃
Storage Temperature Range	Tstg	-40～+120	℃
Solder Temperature(3 sec)	Th	260	℃
