Ultra Bright White/Red Customized Led Display 7 segment Led Display For Oven

Name: Ultra Bright White/Red Customized Led Display 7 segment Led Display For Oven
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB46136LWR3B-D
Price: 0.10 USD
Availability: InStock

Brand Name:	LIGHTBO
Model Number:	LB46136LWR3B-D
MOQ:	1000PCS
Price:	0.1-1.0USD/PCS
Payment Terms:	,T/T,Western Union
Supply Ability:	30000PCS/Days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHs,ISO9001

Packaging Details:

EPE+ Carton

Supply Ability:

30000PCS/Days

Highlight:

customized 7-segment LED display for oven

ultra bright oven timer LED display

red white oven LED display

Product Description

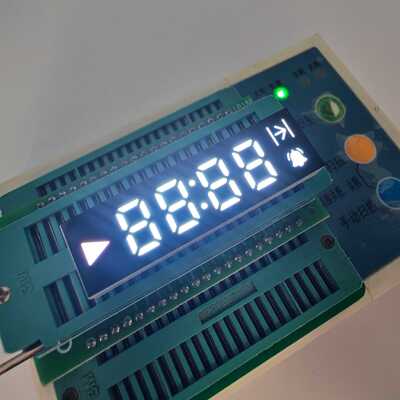

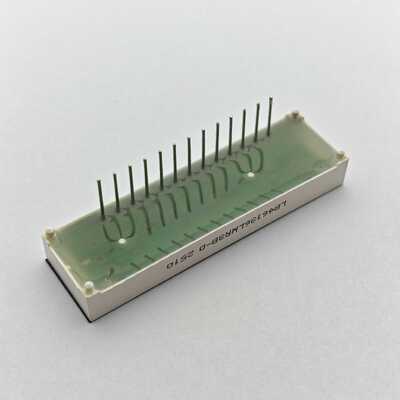

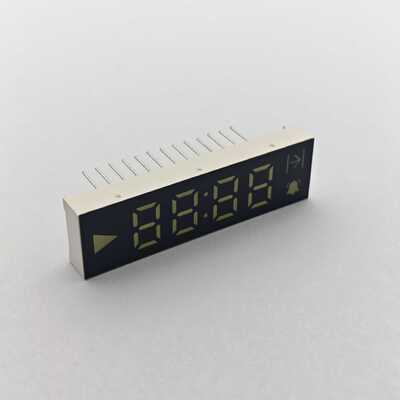

Ultra Bright White/Red Customized LED Display 7 Segment LED Display For Oven

High-quality customized 7-segment LED display specifically designed for oven applications, featuring ultra-bright white and red illumination for optimal visibility.

Product Specifications

Parameter	Specification	Options
Product Name	Custom Seven Segment LED Display For Oven	Other Optional
Part Number	LB46136LWR3B-D	Can print your part number
Digit Number	4 digit	1digit, 2digits, 3digits, 5digits, 6 digits
Digit Height	0.25, 0.36, 0.39....5.0 (inch)
Color	White & Red	Red, blue, pure green, yellow-green, orange, etc.
Size	46136mm	Other sizes supported
Polarity	Common Cathode	Common Anode
Life Span	100,000 hours
Free Samples	Supported
Lead Time for Sample	5-7 working days	Tooling samples: 15-20 working days
Lead Time for Formal Order	15-20 working days	According to order quantity
OEM & ODM	Support	Based on customer's drawing or idea
LOGO Printing	Support	Based on customer's drawing or idea
MOQ	1000 PCS	Can accept 100-500pcs for first order

Technical Parameters

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Super Bright Red -R Specifications

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright White -WH Specifications

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	3.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	120	140	mcd
LED Color Temperature	K	If=10mA	5500	6000	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32	0.30,0.33	nm

Product Applications

Digital Clocks and Timers: Widely used to display numerical time values in hours, minutes, and seconds. Offers high visibility and low power consumption for continuous operation.
Electronic Meters and Measuring Instruments: Commonly found in voltmeters, ammeters, and frequency counters. Provides clear and precise numerical readouts for measurement data.
Household Appliances: Used in microwave ovens, washing machines, and air conditioners. Displays temperature, time, or operational settings for user convenience.
Industrial Control Panels: Integrated into monitoring and control systems for process parameters. Ensures reliable numeric indication in harsh environments.
Consumer Electronics: Found in calculators, remote controls, and digital scales. Offers simple numeric interfaces with minimal design complexity.
Automotive Displays: Applied in dashboards for showing speed, fuel level, or error codes. Provides bright, easily readable output under varying light conditions.
Public Information Systems: Utilized in price boards, scoreboards, and counters. Delivers large, legible numerical data for public viewing.

Certifications

Office and Factory Overview

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays. ISO 9001:2015 Quality Management Systems certified company. With more than 15 years OEM and ODM experience.

LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

Packaging & Shipping

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar and so on.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

A: We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Yes. Please let us know your email address or contact us from website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM service are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it for myself only, and will not show it to anyone else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What will be the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What is the shipping methods?

A: We usually ship the goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA etc, also you can choose the other way that best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% percent test for all of our products before shipment.
