Product Details:
|
| Package Dimension: | 58x19x13.5mm | Working Temperature: | +120C |
|---|---|---|---|
| Emitting Colour: | Ultra Bright Green | ||
| High Light: | 7 segment numeric display,low power 7 segment display |
||
Custom LED Display , 0.56 Inch 7 Segment Led Display For Oven Timer
Product descriptions:
Package dimension: 58x19x13.5mm
Working temperature: +120C
Emitting colour: ultra bright green
Also available in red , yellow green , pure green , blue , amber , orange
Product features:
High luminous intensity
Low power consumption
Stable performance
Continuous uniform segment
Big viewing angle
Long lifetime
Meet RoHS compliant
| Code:J-Ultra Bright Green | ||||||
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 1.8 | 2.5 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 40 | 50 | mcd | |
| Spectrum With Of Half Value | △ | If=20mA | 30 | nm | ||
| Wavelength | D | If=20mA | 569 | 573 | nm | |
| Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse | Ifp | 70 | mA | |||
| Operating Temperature Range | Torp | -35℃～+85℃ | ||||
| Storage Temperature Range | Tstg | -35℃～+85℃ | ||||
| SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃ | ||||||
| Absolute Maximum Rating at Ta=25℃ | ||||||
| Absolute Maximum Ratings(Ta=25℃) | |||
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Applications:
Ideal for home appliances, built-in oven control, multifunction digital oven timer control
Why choose us?
1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If our products have any problem , we will send free in the next order if it is our mistake.

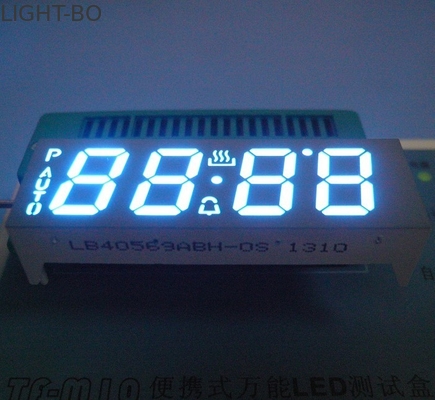

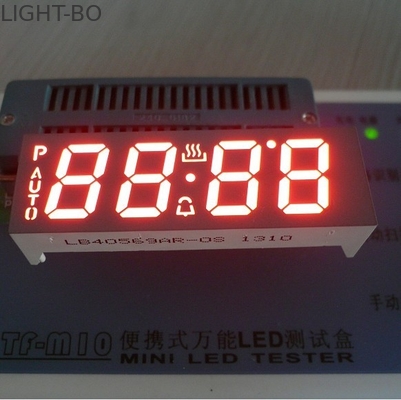

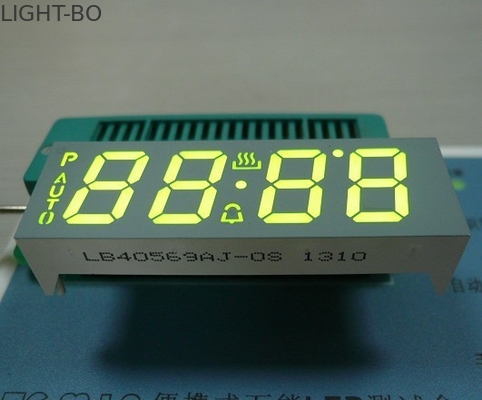

Product Pictures:
