Product Details:
|
| Character Height: | 10.7mm | Outer Dimensions: | 48.6*23.6*11.8 (mm) |
|---|---|---|---|
| Operating Temperature: | +120C | Emitting Colors: | Ultra Bright White |
| High Light: | 7 segment numeric display,low power 7 segment display |
||

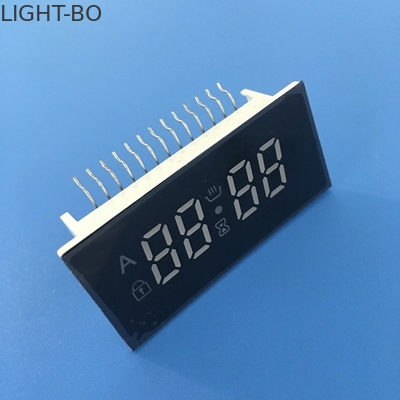

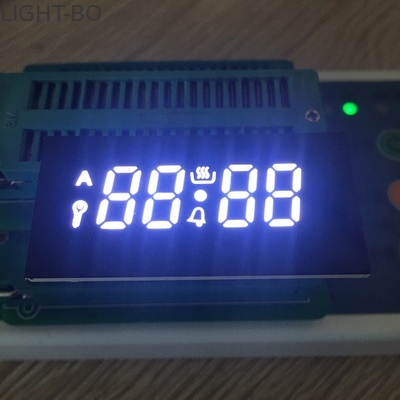

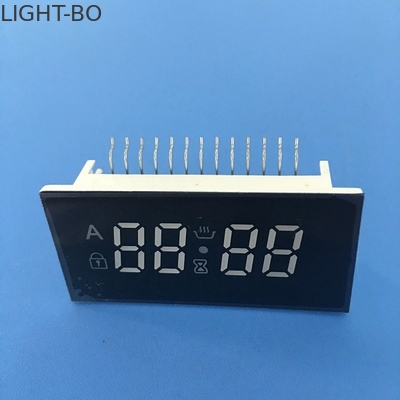

Customized ultra white 4 Digit Seven Segment Display for oven timer
| Package Dimensions | 48.6*23.6*11.8 (mm) |
| Character Height | 10.7mm (0.41") |
| Face Colour | Black |
| Polarity | Common Cathode |
| Working Temperature | Max. +120℃ |
| Emitting Colour | Red,Blue, Gren,White,Amber,Orange |
Package dimensions: 48.6*23.6*11.8 (mm)

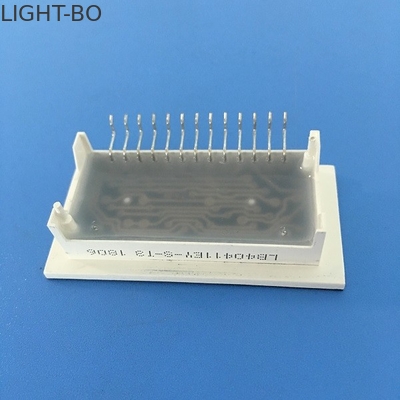

SMD Pin type,Easy mounting on PCB.
Polarity: Common Cathode
Emitting Colour: Pure White,Also available in red,yellow green,pure green,blue, amber, orange
Operating temprature: max. +120C
High luminous intensity and reliability
Easy assembly
IC compatible
Meet RoHS Compliant
Application :
Home electronic appliances, oven timer control, gas cookers,thermosats application,cooling,heating,air conditioner control,refrigerator control,temperatue indicators and so on .
