0.36" 4 Digit 7 Segment LED Display IC Compatible Low Power Consumption

name

0.36" 4 Digit 7 Segment LED Display IC Compatible Low Power Consumption

Brand Name: LIGHTBO
Model Number: LB40361IWH3B
MOQ: 1000PCS
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Dimensions:
30 X 14 X 7.2 Mm
Digit Height:
9.2mm (0.36")
Polarity:
Common Anode
Emitting Colour:
Ultra Bright White
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

seven segment led display

,

low power 7 segment display

Product Description

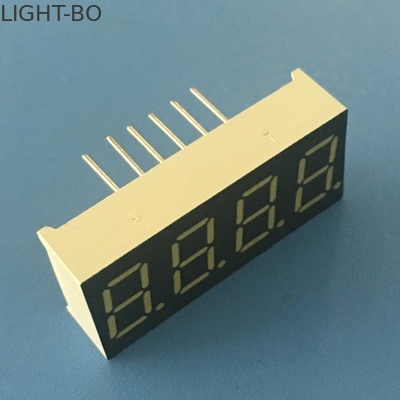

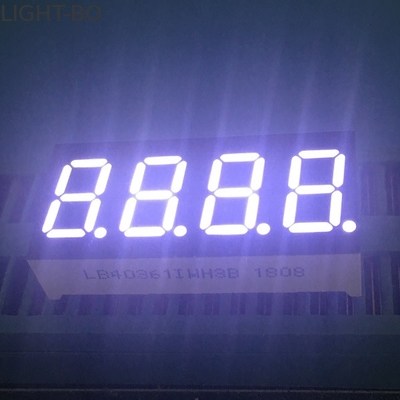

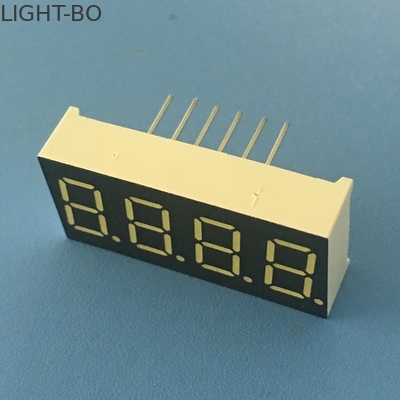

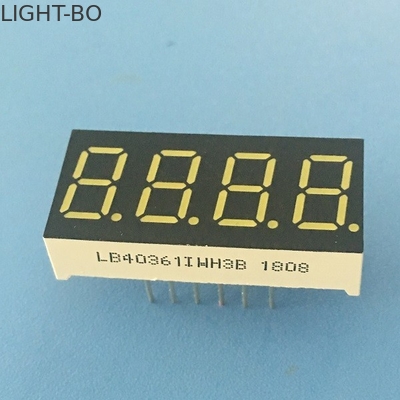

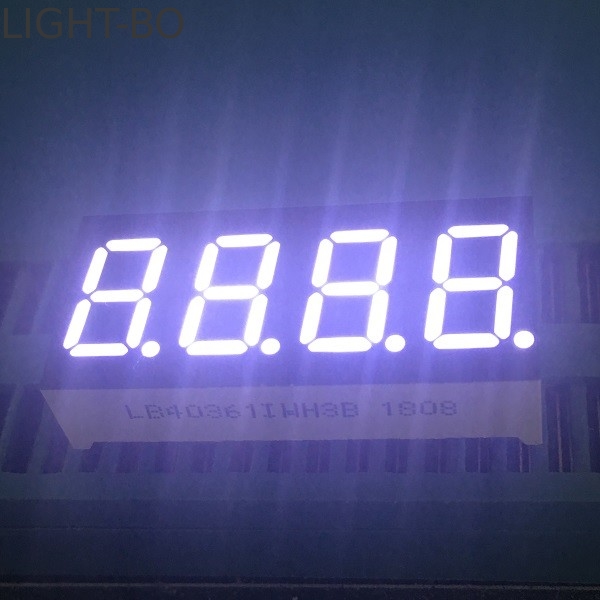

Ultra white Common Anode 0.36" 4 Digit 7 Segment LED Display for Instrument Panel









  • Features:

    • 4-digit 0.36-inch 7-segment LED displays

    • Character height: 9.2mm (0.36 inch)

    • Outer dimensions:30 x 14 x 7.2mm

    • Common anode

    •

    • Ultra Bright White

    • X:0.29-0.31

    • Y:0.29-0.31

    • Luminous intensity:100-120mcd

    • Forward voltage: 2.8-3.6V

    •

    • Made with white segments black surface

    • Emitting color: available in red, blue, yellow green, pure green, white, amber, orange and yellow

    • High luminous intensity

    • Low power consumption

    • Extremely low current

    • Fast heat dissiption

    • Stable performance

    • Continuous uniform segments

    • Easy assembly

    • IC Compatible

    • Meet RoHS Compliant

    • APPLICATION:

    • Widely used for digital displays,digital indicators,temperature indicators, humidity indicators,set up boxes, home appliances,isntrument panels and so on .

    • 0.36" 4 Digit 7 Segment LED Display IC Compatible Low Power Consumption 0
