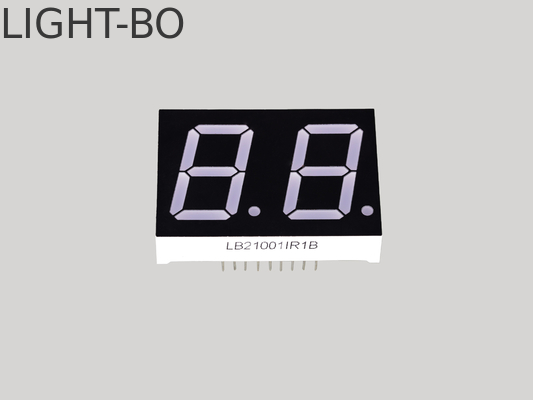

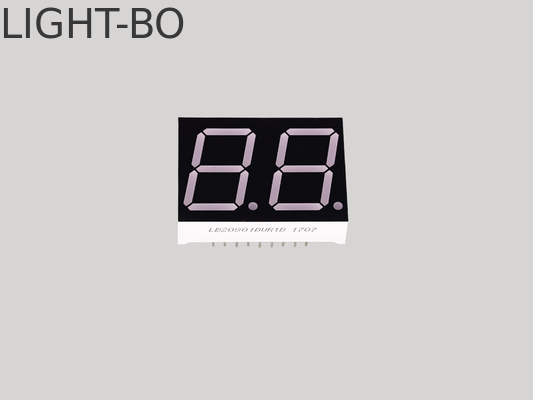

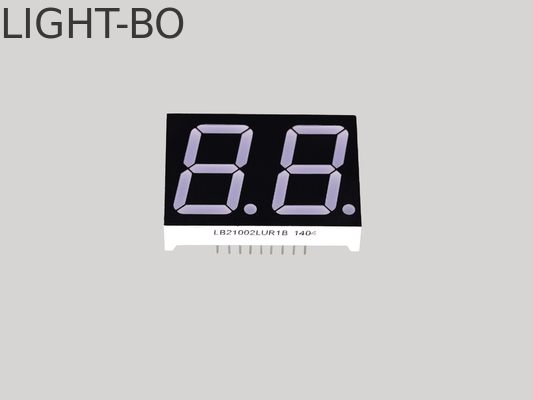

Red 1inch Dual Digit 7 Segment LED Display Common Anode For Instrument Panel

Red 1inch Dual Digit 7 Segment LED Display Common Anode For Instrument Panel

Brand Name: LIGHT-BO
Model Number: LB21001IR1B
MOQ: 500 PCS
Supply Ability: 50,000 Pcs /Month
Detail Information
Place of Origin:
SHENZHEN,CHINA
Certification:
ISO9001&RoHS
Digit Height:
1 Inch
Polarity:
Common Anode
Emitting Colour:
Ultra Bright Red
Surface/ Segment Color:
White Segment Black Surface
Shipping:
By DHL TNT UPS EMS Etc.
Digits:
2
Quality:
High Quality
Forward Voltage:
1.8-2.3V/per Led
Working Temp:
-40 °to +85 °
Packaging Details:
EPE+CARTON
Supply Ability:
50,000 Pcs /Month
Highlight:

seven segment led display

,

low power 7 segment display

Product Description

Specification of Segment LED Displays

Product Name Seven Segment LED Display Other Optional
Part NO. LB21001IR1B Can print your part number
Digit number 2 digit 1digit,2digits, 3digits,5digits,6 digits
Digit height 1inch 0.25,0.36,0.39....5.0(inch)
Color RED Red, blue,pure green, yellow-green, orange,etc.
Size   Other size are supported
Polarity Common Anode Common Cathode
Life span 80000hours
Free Samples supported
Lead time for sample 5-7 working days Tooling samples are 15-20 working days
Lead time for formal order 15-20 working days According to order quantity
OEM&ODM Support Based on customer's drawing or idea
LOGO printing Support Based on customer's drawing or idea
MOQ 1000PCS Can accept 100-500pcs for first order

Color:RED

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.3 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value λ If=20mA   20   nm
Wavelength If=20mA       nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(3 sec) Th 260 ºC



Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems



Why choose us?

1. Best quality

- Three times of inspection on all products on production:

Step 1;raw material check

Step 2: process check and full inspection after chip&wire bonding

Step 3: full test before packing and partial check before shipment

2. Best price

- manufacturer

- best suppliers sources

- all products by oneself

3. Our customer

- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc

4. Company strength

- good quality&competitive price

- listed company

- factory of over 100 workers, with many auto-machines under advanced ERP management.

- management system: ISO 9001:2008,SGS
