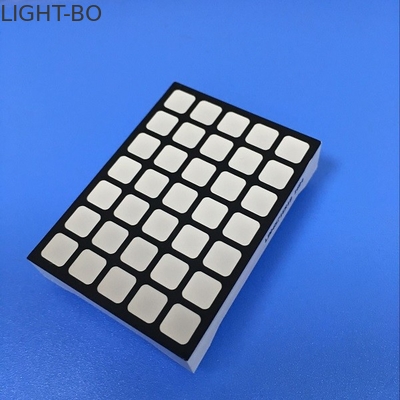

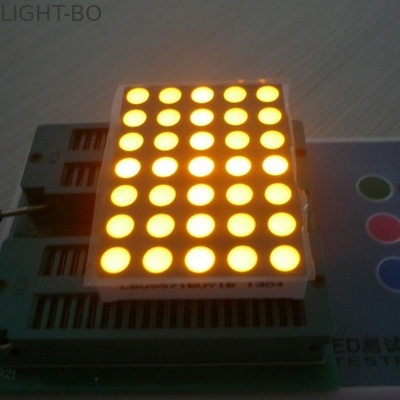

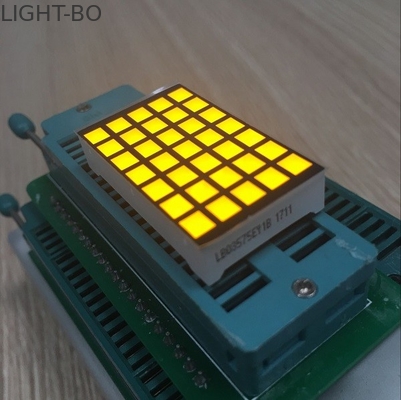

Ultra Bright Multi Color Led Dot Matrix 5 x 7 Display Board , Outdoor Led Message Boards 20mA

Ultra Bright Multi Color Led Dot Matrix 5 x 7 Display Board , Outdoor Led Message Boards 20mA

Brand Name:	LIGHTBO
Model Number:	LB03572BWH1B
MOQ:	1000PCS
Price:	Negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Name:

Led Dot Matrix 5 X 7 Display

Face Color:

Yellow Segments Black Face

Forward Voltage(VF):

3.0-3.6V

Colour:

Pure White

Connection:

Row Anode Column Cathode

Feature:

Wide Viewing Angle,IC Compatible

Advantage:

Excellent Design Of Outer Appearance

Characteristic:

High Quality With Reasonable Price

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

flexible dot matrix display

led message display

Product Description

Dot Matrix LED Running Display Message Board , Scrolling LED Display

Quick details

1.2 inch 3mm 5 x 7 dot matrix led display
Ultra bright white
Row Anode Column Cathode

Key Specifications:

Package Dimensions	22.85 x 31.99 x 8.0 mm
Face Color	Yellow Segments Black Face
Connection	Row Anode Column Cathode
Colour	Pure White
(X,Y)	0.29-0.33
IV	120-140mcd/dot
Forward Voltage(VF)	3.0-3.6V
Forward Current	20mA
Reverse Voltage	5V

Special Features

High luminous intensity low power consumption
Big viewing angle
Stable performance
Continous uniform dots
Long lifetime
Easy assembly
IC compatible
RoHS directive-compliant
Appliction: Widely used for home appliances, lift position indicators, digital displays, elevator floor indicators, display screen and so on .
Emitting colors: red, blue, white, yellow green, pure green, amber, orange,RGB
Fast heat dissipation for lift position indicators
Strict quality testing before it leave the factory
We have our own production workshop and production facility
We can customize it according to the customer's actual requirements

Description:

Dot matrix LED displays are designed with :
1. High brightness. Produced by high lumunous led dices.
2. Low current operation;
3. Low power consumption;
4. Stable quality and performance;
5. Excellent dot uniformity;
6. Wide viewing angle;
7. Fast heat dissipation;
8. Long lifespan;
9. Easy mounting on PC Boards an sockets;
10. IC Compatible
11. Meet RoHS
12. Colours available in: red, green, blue, white, amber, orange, bi-colour, RGB.
13. Character height available from 17.8mm (0.7”) to 106.5mm (4.2”).

Competitive Advantage:

1. Can display various contents
2. Stable performance
3. Low cost
4. Low power consumption
5. Long life span
6. Easy assembly
7. High brightness
8. Wide viewing angle
9. Various sizes and colours available
10. No MOQ;
11. Prompt Delivery
12. Stable quality
13. Long lifespan
14. Cost-competitive
15. Excellent service
16. Various colours available
17. OEM & ODM acceptable
