|Outer Dimension:||28*11*5||Emitting Colour:||Ultra Bright White|
|Digit Height:||0.23inch||Polarity:||Common Anode|
0.23'' Common Anode LED Display,
20mA Common Anode LED Display,
120mcd 5 Digit LED Display

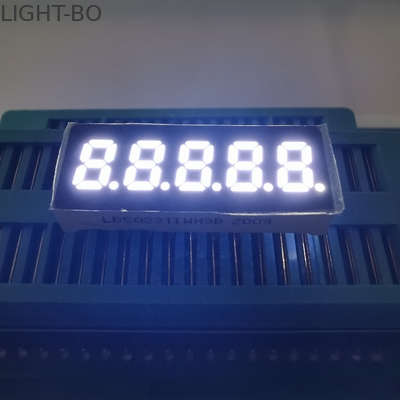

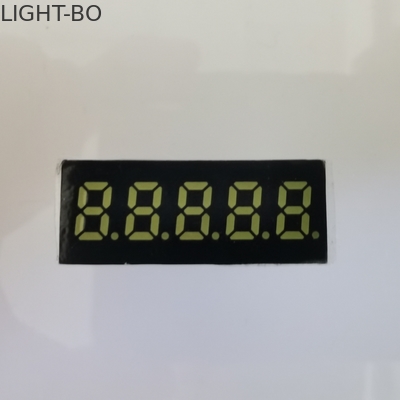

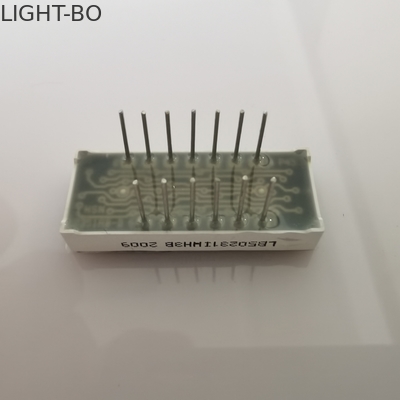

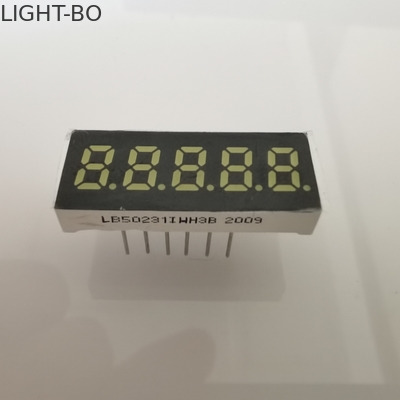

Ultra Bright White 0.23'' 5digit 7segment LED Display Common Anode yellow segment black face
Digit height:6mm (0.32inch )
Emitting color : ultra bright white
Polarity: Common Anode
High-luminous intensity output
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe
Widely used for digital displays,digital indicators,temperature indicators, humidity indicators,set up boxes, home appliances,isntrument panels and so on .
Code:Ultra Bright White
|Spectrum With Of Half Value||△λ||If=20mA||20||nm|
Absolute Maximum Ratings(Ta=25℃)
|Forward Current(per dice)||Ipm||20||mA|
|Reverse Voltage(per dice)||Vr||5||V|
|Power Dissipation(per dice)||Pm||80||mW|
|Operating Temperature Range||Topr||-40～+120||℃|
|Storage Temperature Range||Tstg||-40～+120||℃|
|Solder Temperature(3 sec)||Th||260||
LED working lifetime 100,000hrs
Absolute Maximum Rating at Ta=25℃
1.Is your parts new ?
Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.
2.What is your warranty?
Answer: Within one year after package have been received.
3.How to pay the order?
Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.
Answer: If there is any quality problem or question, we could offer technical support or return service.
5.What is your lead time?
Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.
6. May I have a sample for testing?
Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
