|Outer Dimension:||40*16*11||Emitting Colour:||Yellow|
|Digit Height:||0.4inch||Polarity:||Common Anode|
20mcd 7 Segment Digital Displa,
595nm 7 Segment Digital Displa,
20mA 4 Digit LED Display

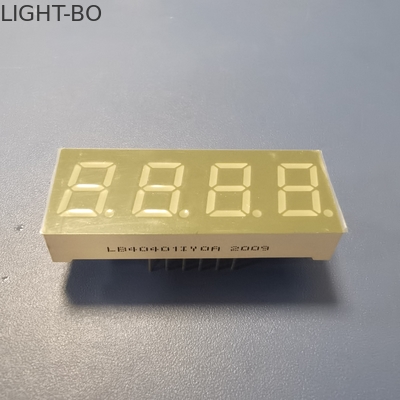

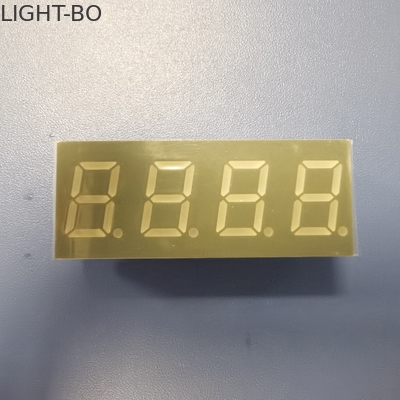

0.4inch 4 Digit 7 Segment Digital LED Display Color Yellow Gray Face
Digit height: 0.4 inch
Emitting color : Yellow
Polarity: Common Anode
High-luminous intensity output
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe
|Spectrum With Of Half Value||△λ||If=20mA||30||nm|
Absolute Maximum Ratings(Ta=25℃)
|Forward Current(per dice)||Ipm||20||mA|
|Reverse Voltage(per dice)||Vr||5||V|
|Power Dissipation(per dice)||Pm||80||mW|
|Operating Temperature Range||Topr||-40～+120||℃|
|Storage Temperature Range||Tstg||-40～+120||℃|
|Solder Temperature(3 sec)||Th||260||
LED working lifetime 100,000hrs
Absolute Maximum Rating at Ta=25℃
1.Is your parts new ?
Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.
2.What is your warranty?
Answer: Within one year after package have been received.
3.How to pay the order?
Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.
Answer: If there is any quality problem or question, we could offer technical support or return service.
5.What is your lead time?
Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.
6. May I have a sample for testing?
Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
Contact Person: lightbo
