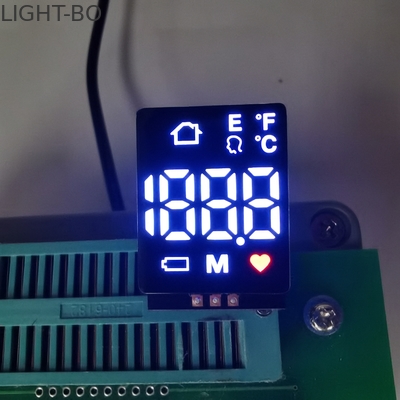

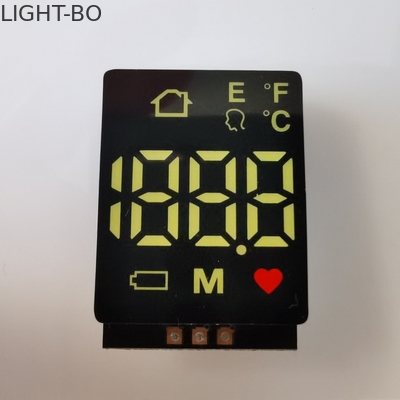

20mA 120mcd 635nm SMD LED Display For Forehead Thermometer

20mA 120mcd 635nm SMD LED Display For Forehead Thermometer

Brand Name:	LIGHTBO
Model Number:	LB2520LW-S
MOQ:	1000PCS
Price:	Negotiation
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Outer Dimension:

25.5*20.5*3.6mm

Emitting Colour:

Ultra Bright White

Polarity:

Common Cathode

Lifespan:

100000hrs

Usage:

Indoor/Outdoor

Trade Term:

ShenZhenEXW

Packaging Details:

Taping +CARTON

Supply Ability:

50000PCS/Day

Highlight:

120mcd SMD LED Display

635nm SMD LED Display

20mA Common Anode LED Display

Product Description

Hot Sales 3 Pins Ultra White / Red SMD LED Display Common Anode For Forehead Thermometer

Specifications:

SMD LED Display
Outer dimensions:25.5*20.5*3.6mm
Emitting color : ultra bright white
Polarity: Common Cathode

Advantages:

High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe

Widely used for digital displays,digital indicators,temperature indicators, humidity indicators,set up boxes, home appliances,isntrument panels and so on .

Code:Ultra Bright White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.6	V
Reverse Voltage	Vr	Ir=40uA		5		V
Luminous Intensty	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		635	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+120	℃
Storage Temperature Range	Tstg	-40～+120	℃
Solder Temperature(3 sec)	Th	260	℃

LED working lifetime 100,000hrs

Absolute Maximum Rating at Ta=25℃

show:

20mA 120mcd 635nm SMD LED Display For Forehead Thermometer 0

Shipping:

Production:

FAQ:

1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
