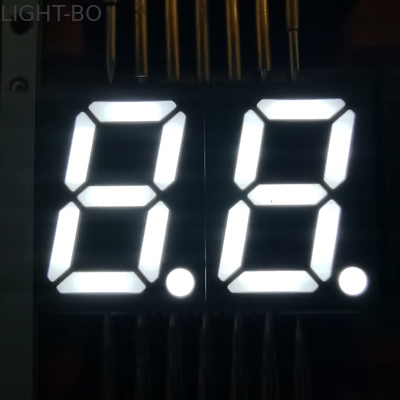

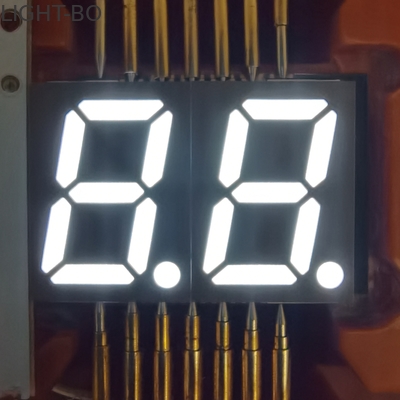

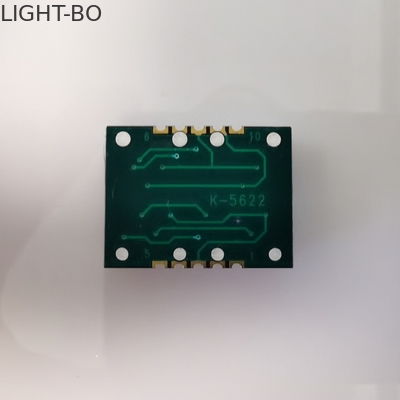

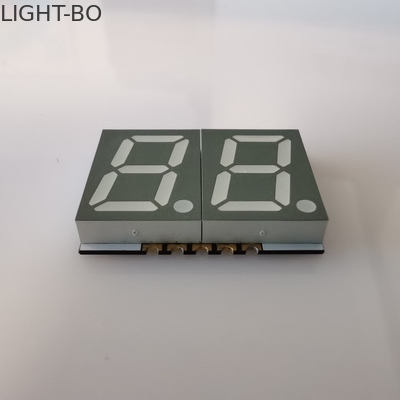

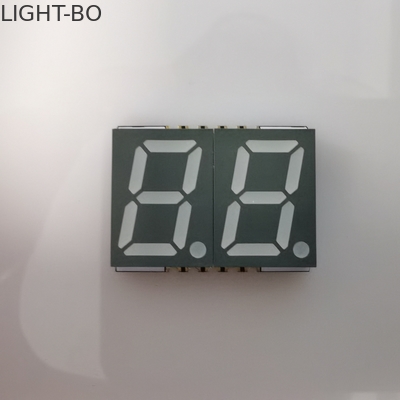

Common Anode Seven Segment SMD LED Display 80mW 2 Digits

Common Anode Seven Segment SMD LED Display 80mW 2 Digits
Common Anode Seven Segment SMD LED Display 80mW 2 Digits
Common Anode Seven Segment SMD LED Display 80mW 2 Digits Common Anode Seven Segment SMD LED Display 80mW 2 Digits Common Anode Seven Segment SMD LED Display 80mW 2 Digits Common Anode Seven Segment SMD LED Display 80mW 2 Digits Common Anode Seven Segment SMD LED Display 80mW 2 Digits Common Anode Seven Segment SMD LED Display 80mW 2 Digits

Large Image :  Common Anode Seven Segment SMD LED Display 80mW 2 Digits

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LBS2056IW-SMT
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: Taping +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Common Anode Seven Segment SMD LED Display 80mW 2 Digits

Description
Outer Dimension: 25*19*3.75mm Emitting Colour: Ultra Bright White
Digit Height: 0.56inch Polarity: Common Anode
Lifespan: 100000hrs Usage: Indoor/Outdoor
High Light:

Seven Segment SMD LED Display

,

Common Anode SMD LED Display

,

80mW 2 Digits LED Display



0.56'' Ultra Bright White Two Digits Seven Segment SMD LED Display White Segment Gray Face CC





Specifications:

  • SMD LED Display
  • Outer dimensions:25*19*3.75mm

  • Digit height:14.2mm (0.56inch )

  • Emitting color : ultra bright white

  • Polarity: Common Anode

Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Widely used for digital displays,digital indicators,temperature indicators, humidity indicators,set up boxes, home appliances,isntrument panels and so on .



Code:Ultra Bright White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.6 V
Reverse Voltage Vr Ir=40uA   5   V
Luminous Intensty Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 100,000hrs

Absolute Maximum Rating at Ta=25



Shipping:

Common Anode Seven Segment SMD LED Display 80mW 2 Digits 0





FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
