Pure Green 200mcd 5x7 Dot Matrix LED Display Transparent Glue

Pure Green 200mcd 5x7 Dot Matrix LED Display Transparent Glue

Brand Name: LIGHTBO
Model Number: LB05574CG1B
MOQ: 1000PCS
Price: Negotiation
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Emitting Colour:
Pure Green
Package Dimension:
53*38*8.4mm
ROW&COL:
5*7
Polarity:
Common Cathode
Lifespan:
80000hrs
Usage:
Indoor/Outdoor
Packaging Details:
EPE +CARTON
Supply Ability:
50000PCS/Day
Highlight:

5x7 Dot Matrix LED Display

,

200mcd Dot Matrix LED Display

,

Transparent Glue Led Matrix Display Board

Product Description

Pure Green 5*7 Dot Matrix LED Display Transparent Glue

Features:

  • Outer dimensions:53*38*8.4mm

  • Dot Matrix:5*7

  • Emitting color : Pure Green

  • Polarity: Common Cathode

Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Code: Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 3.0   3.5 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 200   220 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 525   530 nm



Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 80,000hrs

Absolute Maximum Rating at Ta=25℃

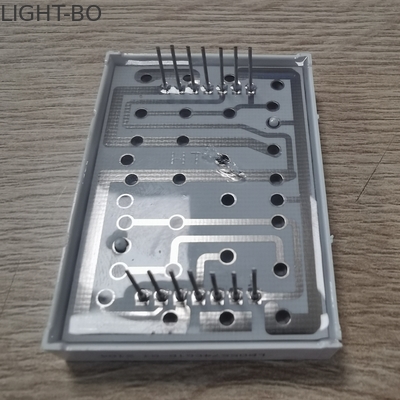

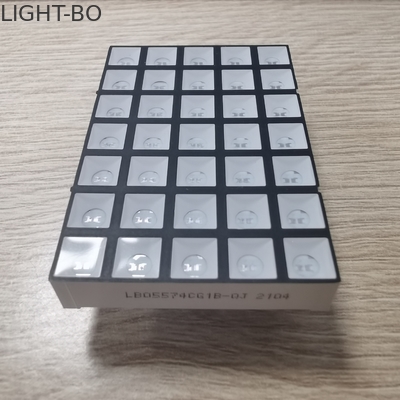

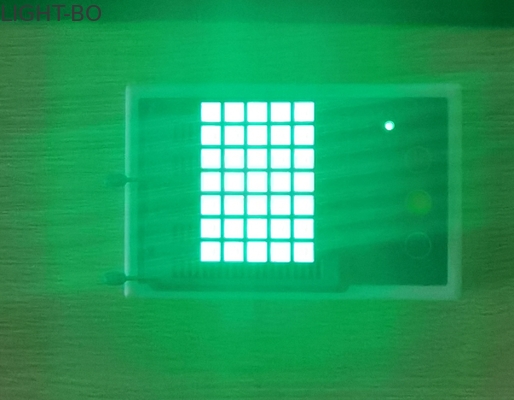

Pure Green 200mcd 5x7 Dot Matrix LED Display Transparent Glue 0Pure Green 200mcd 5x7 Dot Matrix LED Display Transparent Glue 1

FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
