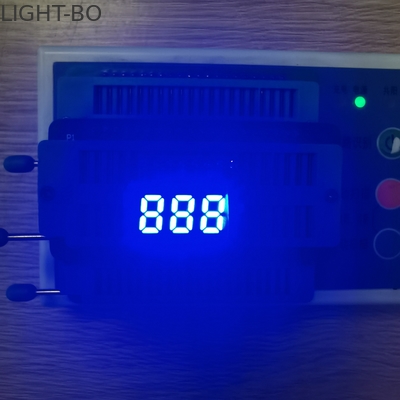

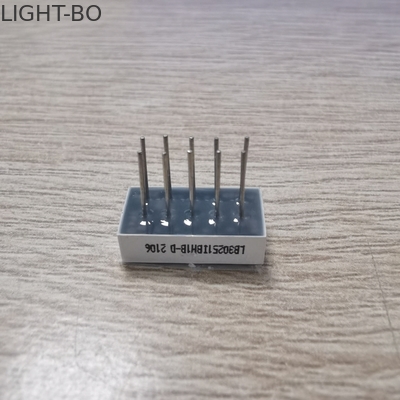

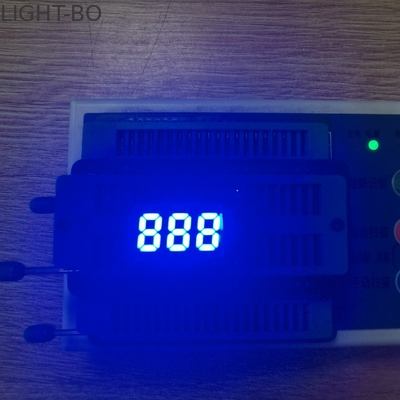

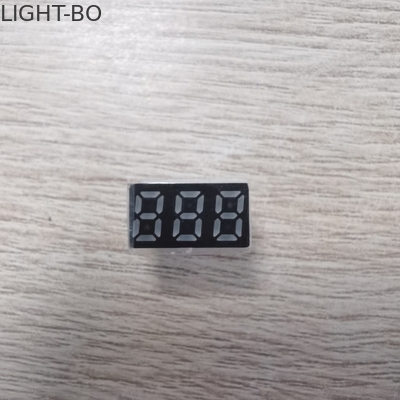

0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue

0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue
0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue 0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue 0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue 0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue

Large Image :  0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB30251IBH1B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue

Description
Emitting Colour: Super Bright Blue Package Dimension: 15*8*4 Mm
Digital Height: 0.25 Inch (6.00mm) Polarity: Common Anode
Lifespan: 80000hrs Usage: Indoor/Outdoor
High Light:

465nm 7 Segment Led Display

,

0.25 Inch 7 Segment Led Display

,

80mW Triple Digit Led Display

Ultra Bright Blue Small Size Triple Digit 0.25inch Common Aonde 7 Segment Led Display For Home Appliances



Features:

  • Outer dimensions:15*8*4 mm

  • Digital height :0.25 inch (6.00mm)

  • Emitting color : Super Bright blue

  • Polarity: Common Anode

Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Code: Bright Blue

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 3.1   3.6 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA   80   mcd
Spectrum With Of Half Value △λ If=20mA   22   nm
Wavelength If=20mA 462   465 nm



Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 80,000hrs

Absolute Maximum Rating at Ta=25℃



0.25 Inch 465nm 7 Segment Led Display 80mW Ultra Blue 0

FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
