Product Details:
|
| Emitting Colour: | Super Bright Red /Pure Green/Blue | Package Dimension: | 52 X 14 X 8 Mm |
|---|---|---|---|
| PIN: | 4 | Polarity: | Common Anode |
| Lifespan: | 80000hrs | Application: | Power |
| High Light: | 635nm LED Light Bar,35mcd LED Light Bar,80000hrs Common Anode LED Bar |
||

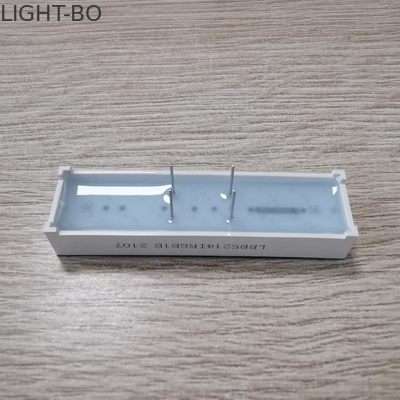

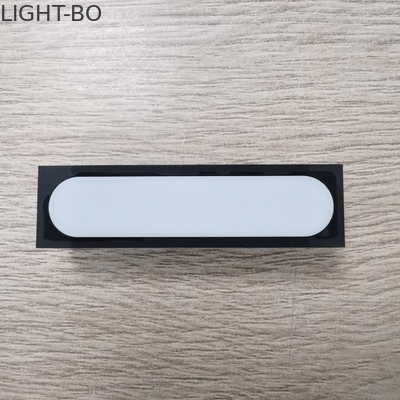

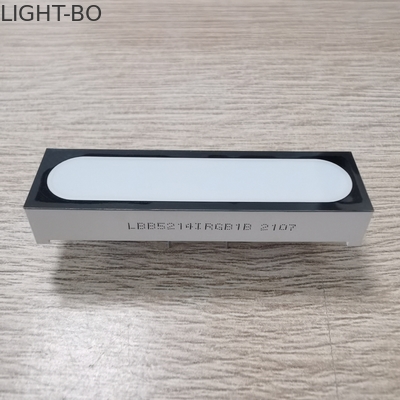

Ultra Red /Green/Blue RGB SMT Chip- Ellipse LED Light Bar For Power
Features:
Outer dimensions:52*14*8 mm
Emitting color : Super Bright Red,Pure Green,Blue
Polarity: Common Anode
Application:Power Display
Advantages:
High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe

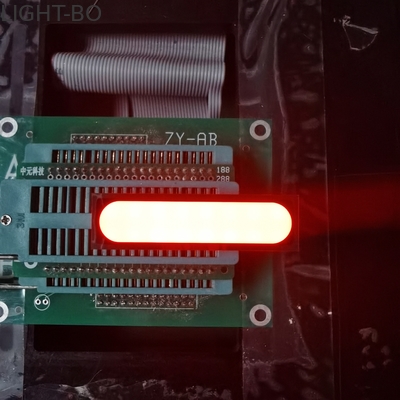

Code: Bright Red
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 25 | 35 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 625 | 635 | nm |

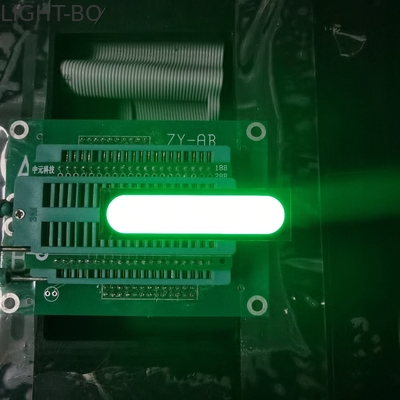

Code:Pure Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 3.0 | 3.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 200 | 220 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 525 | 530 | nm |

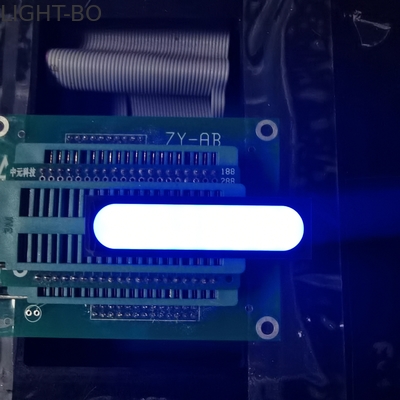

Code:Blue
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 3.0 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 30 | V | ||
| Luminous Intensty | Iv | If=20mA | 13 | mcd | ||
| Spectrum With Of Half Value | △λ | If=20mA | 30 | nm | ||
| Wavelength | Dλ | If=20mA | 465 | 473 | nm |
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+120 | ℃ |
| Storage Temperature Range | Tstg | -40～+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 |
℃ |
LED working lifetime 80,000hrs
Absolute Maximum Rating at Ta=25℃
FAQ:
1.Is your parts new ?
Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.
2.What is your warranty?
Answer: Within one year after package have been received.
3.How to pay the order?
Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.
4.Quality problems
Answer: If there is any quality problem or question, we could offer technical support or return service.
5.What is your lead time?
Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.
6. May I have a sample for testing?
Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
