10.4mm 7 Segment Led Display 120mcd For Electric Scooter

10.4mm 7 Segment Led Display 120mcd For Electric Scooter

Brand Name: LIGHTBO
Model Number: LB2922IWH3B
MOQ: 2000PCS
Price: Negotiation
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Outer Dimension:
29*22*7mm
Emitting Colour:
White
Digit Height:
0.40 Inch (10.4mm)
Polarity:
Common Anode
Lifespan:
100000hrs
Application:
Electric Scooter
Packaging Details:
EPE +CARTON
Supply Ability:
50000PCS/Day
Highlight:

Electric Scooter 7 Segment Led Display

,

10.4mm 7 Segment Led Display

,

120mcd 2 Digit Led Display

Product Description

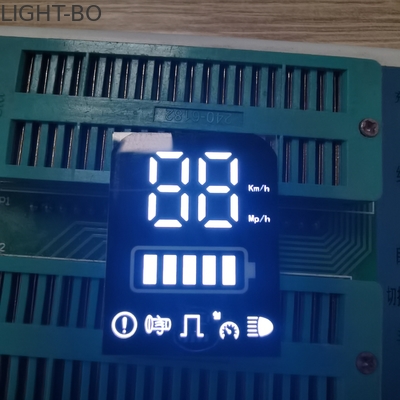

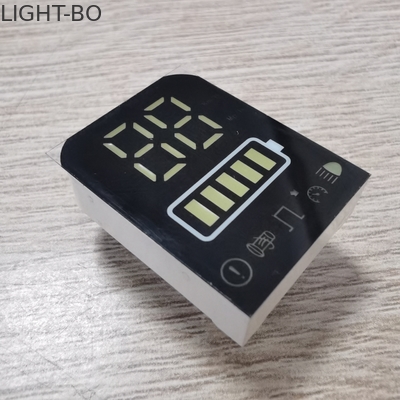

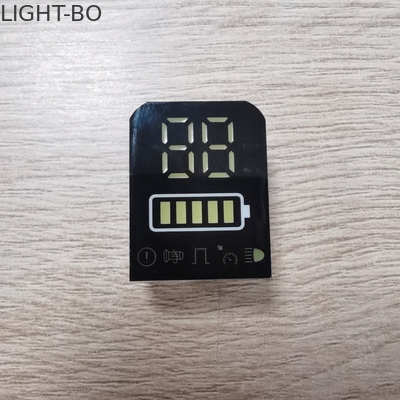

Bright White Custom 0.40inch 2digit 7segment Led Dispaly For Electric Scooter



Features:

  • Outer dimensions:29*22*7mm

  • Digit height: 0.40inch (10.4mm)

  • Emitting color :  White

  • Polarity: Common Anode

  • Application:Electric Scooter

 Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Code:Ultra Bright White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.6 V
Reverse Voltage Vr Ir=40uA   5   V
Luminous Intensty Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 100,000hrs,  Absolute Maximum Rating at Ta=25
