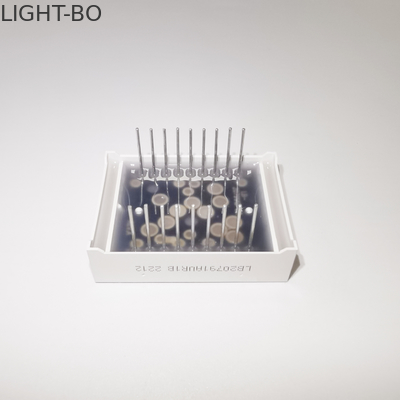

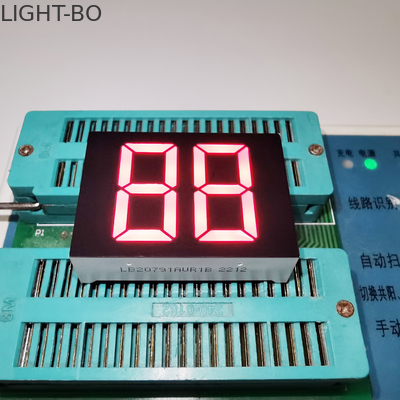

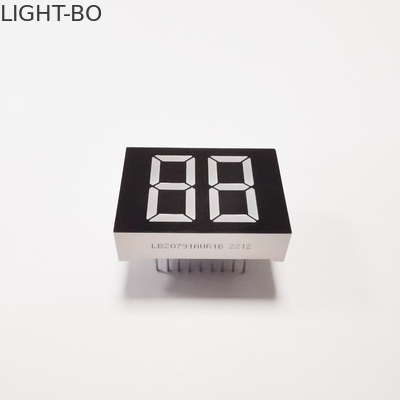

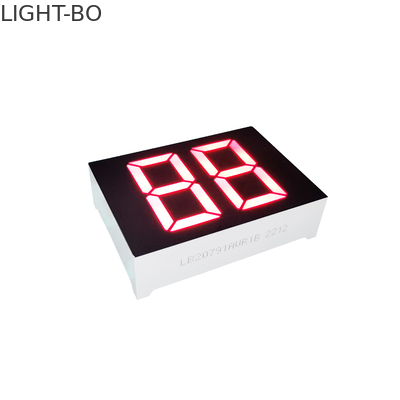

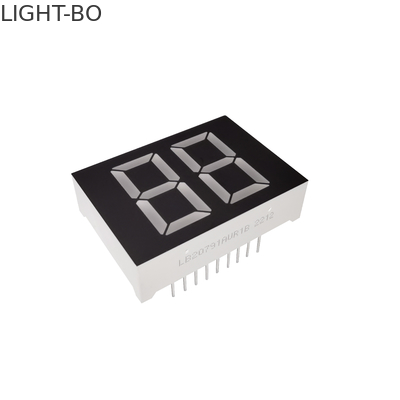

Ultra Bright Red Dual Digit 7 Segment LED Display 0.79inch Common Anode For Water Heater

Ultra Bright Red Dual Digit 7 Segment LED Display 0.79inch Common Anode For Water Heater

Brand Name: LIGHTBO
Model Number: LB20791AUR1B
MOQ: 1000PCS
Price: Negotiation
Payment Terms: T/T, Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
SGS&ISO9100
Emitting Colour:
Super Bright Red
Outer Dimension:
35.8*25.8*10mm
Digit Height:
0.79 Inch
Polarity:
Common Anode
Lifespan:
80000hrs
Application:
Water Heater
Packaging Details:
EPE +CARTON
Supply Ability:
50000PCS/Day
Highlight:

Ultra Bright 7 Segment LED Display

,

Water Heater 7 Segment LED Display

,

Dual Digit 7 Segment Display 0.79inch

Product Description

Quick Detail of Segment LED Displays

1. We can supply you all kinds of 7 segment LED display:

--- Digit size: from 0.25" to 20"

--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment, 14 segment and 16 segment both available

3. Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color

4. Available surface color: black,gray or red



Specification of Segment LED Displays

Product Name 0.79 Inch 2 Digit Seven Segment  LED Display Other Optional
Part NO. LB12301AR1B Can print your part number
Digit number 1 digit 2digits,3digits, 4digits,5digits,6 digits
Digit height 0.79 inch 0.25,0.36,0.39....5.0(inch)
Color RED White, blue,pure green, yellow-green, orange,etc.
Size 35.8*25.8*10mm Other size are supported
Polarity Common Anode  Common Cathode
Life span 80000hours
Free Samples supported
Lead time for sample 5-7 working days Tooling samples are 15-20 working days
Lead time for formal order 15-20 working days According to order quantity
OEM&ODM Support Based on customer’s drawing or idea
LOGO printing Support Based on customer’s drawing or idea
MOQ 1000PCS Can accept 100-500pcs for first order

Color:Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.3 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value λ If=20mA   20   nm
Wavelength If=20mA 625   630 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260



Feature of Segment LED Displays

--White segment Black surface

--High luminous intensity

--Low current operation

--Stable performance

--Continuous uniform segments

--Easy mounting on PCB

--IC compatible

--RoHS compliant

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.



Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems



Why choose us?

1. Best quality

- Three times of inspection on all products on production:

Step 1;raw material check

Step 2: process check and full inspection after chip&wire bonding

Step 3: full test before packing and partial check before shipment

2. Best price

- manufacturer

- best suppliers sources

- all products by oneself

3. Our customer

- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc

4. Company strength

- good quality&competitive price

- listed company

- factory of over 100 workers, with many auto-machines under advanced ERP management.

- management system: ISO 9001:2008,SGS



FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.

Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.
Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.

Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list.

Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

    We will offer the charge to you as you requested.

Q: May I have some samples for testing?

A: Yes,we can provide 5-10pcs free samples in your delivery cost.
