|Emitting Colour:||Super Bright White||Outer Dimension:||44*16*11.85mm|
|Digit Height:||0.38 Inch||Polarity:||Common Cathode|

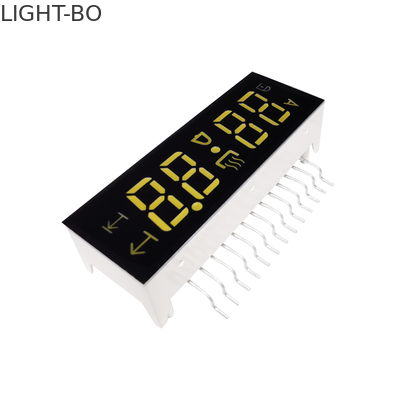

0.38" Seven Segment LED Display,
Oven Seven Segment LED Display,
Oven 7 Segment LED Display
Quick Detail of Segment LED Displays
1. We can supply you all kinds of 7 segment LED display:
--- Digit size: from 0.25" to 20"
--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment, 14 segment and 16 segment both available
3. Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color
4. Available surface color: black,gray or red
Specification of Segment LED Displays
|Product Name||2.3 Inch 1 Digit Seven Segment LED Display||Other Optional|
|Part NO.||LB40381EWH-3S-T2-D||Can print your part number|
|Digit number||4 digit||1digit,2digits, 3digits,5digits,6 digits|
|Digit height||0.38 inch||0.25,0.36,0.39....5.0(inch)|
|Color||White||Red, blue,pure green, yellow-green, orange,etc.|
|Size||44*16*11.85mm||Other size are supported|
|Polarity||Common Cathode||Common Anode|
|Lead time for sample||5-7 working days||Tooling samples are 15-20 working days|
|Lead time for formal order||15-20 working days||According to order quantity|
|OEM&ODM||Support||Based on customer’s drawing or idea|
|LOGO printing||Support||Based on customer’s drawing or idea|
|MOQ||1000PCS||Can accept 100-500pcs for first order|
|Spectrum With Of Half Value||λ||If=20mA||20||nm|
Absolute Maximum Ratings(Ta=25℃)
|Forward Current(per dice)||Ipm||20||mA|
|Reverse Voltage(per dice)||Vr||5||V|
|Power Dissipation(per dice)||Pm||80||mW|
|Operating Temperature Range||Topr||-40~+120||℃|
|Storage Temperature Range||Tstg||-40~+120||℃|
|Solder Temperature(3 sec)||Th||260||℃|
Feature of Segment LED Displays
--White segment Black surface
--High luminous intensity
--Low current operation
--Continuous uniform segments
--Easy mounting on PCB
Application of Segment LED Displays
-- Audio Equipment or instrument panels;
-- General using for digital indicators;
-- Multimedia products;
-- Bank exchange rate display;
-- LED clock display;
-- Display for gas station and other various display areas of equipment/machine.
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
Why choose us?
1. Best quality
- Three times of inspection on all products on production:
Step 1；raw material check
Step 2: process check and full inspection after chip&wire bonding
Step 3: full test before packing and partial check before shipment
2. Best price
- best suppliers sources
- all products by oneself
3. Our customer
- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc
4. Company strength
- good quality&competitive price
- listed company
- factory of over 100 workers, with many auto-machines under advanced ERP management.
- management system: ISO 9001:2008,SGS
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.
Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.
Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list.
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q: May I have some samples for testing?
A: Yes,we can provide 5-10pcs free samples in your delivery cost.
