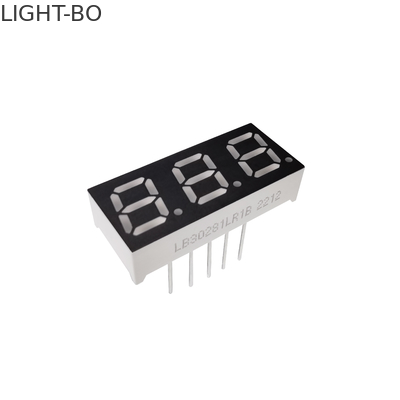

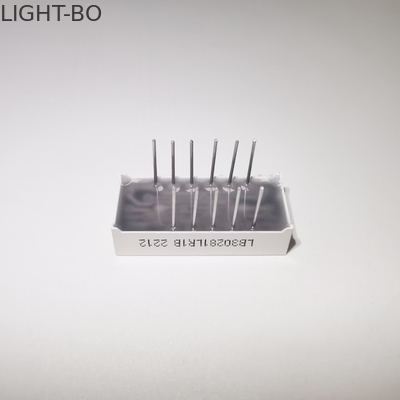

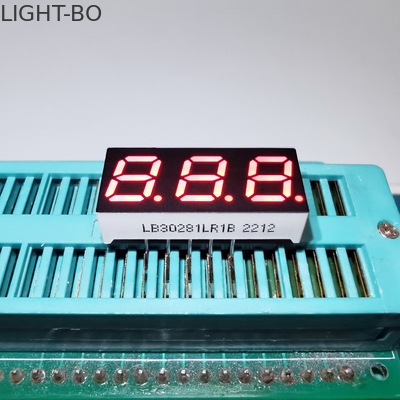

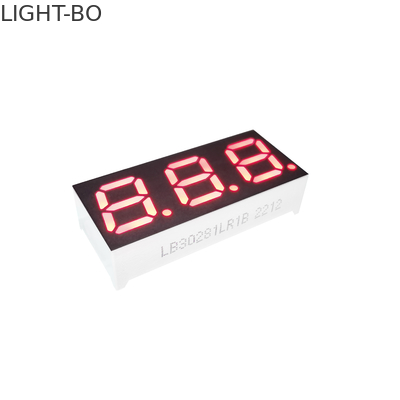

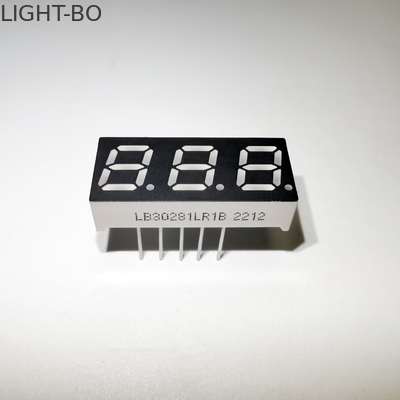

Ultra Bright Red 3 Digit 7 Segment LED Display 0.28inch Common Cathode For Small Home Appliance

Ultra Bright Red 3 Digit 7 Segment LED Display 0.28inch Common Cathode For Small Home Appliance

Brand Name:	LIGHTBO
Model Number:	LB30281LR1B
MOQ:	1000PCS
Price:	Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

SGS&ISO9100

Emitting Colour:

Super Bright Red

Outer Dimension:

22.53*10*6.1mm

Digit Height:

0.28 Inch

Polarity:

Common Cathode

Lifespan:

80000hrs

Application:

Home Appliance

Packaging Details:

EPE +CARTON

Supply Ability:

50000PCS/Day

Highlight:

0.28inch 7 Segment LED Display

Ultra Bright 7 Segment LED Display

Product Description

Specification of Segment LED Displays

Product Name	0.28 Inch 3 Digit Seven Segment LED Display	Other Optional
Part NO.	LB30281LR1B	Can print your part number
Digit number	3 digit	1digits,2digits, 4digits,5digits,6 digits
Digit height	0.28 inch	0.25,0.36,0.39....5.0(inch)
Color	RED	White, blue,pure green, yellow-green, orange,etc.
Size	22.53106.1mm	Other size are supported
Polarity	Common Cathode	Common Anode
Life span	80000hours
Free Samples	supported
Lead time for sample	5-7 working days	Tooling samples are 15-20 working days
Lead time for formal order	15-20 working days	According to order quantity
OEM&ODM	Support	Based on customer’s drawing or idea
LOGO printing	Support	Based on customer’s drawing or idea
MOQ	1000PCS	Can accept 100-500pcs for first order

Color:Red

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.3	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		630	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Ultra Bright Red 3 Digit 7 Segment LED Display 0.28inch Common Cathode For Small Home Appliance 0

Feature of Segment LED Displays

-- White segment Black surface

-- High luminous intensity

-- Low current operation

-- Stable performance

-- Continuous uniform segments

-- Easy mounting on PCB

-- IC compatible

-- RoHS compliant

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

Why choose us?

1. Best quality

- Three times of inspection on all products on production:

Step 1；raw material check

Step 2: process check and full inspection after chip&wire bonding

Step 3: full test before packing and partial check before shipment

2. Best price

- manufacturer

- best suppliers sources

- all products by oneself

3. Our customer

- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc

4. Company strength

- good quality&competitive price

- listed company

- factory of over 100 workers, with many auto-machines under advanced ERP management.

- management system: ISO 9001:2008,SGS
