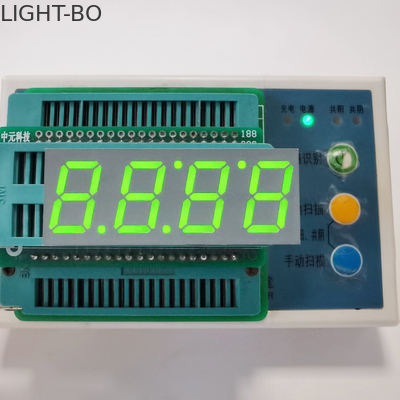

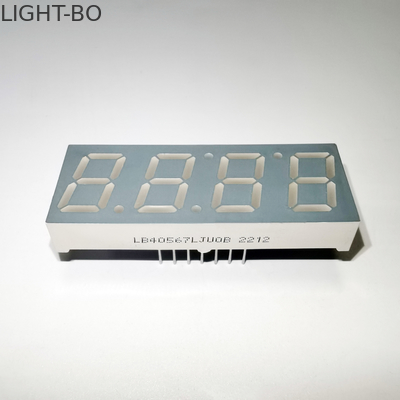

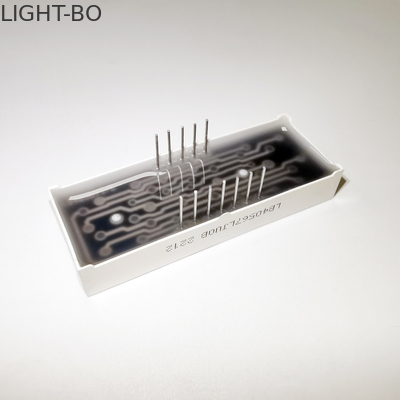

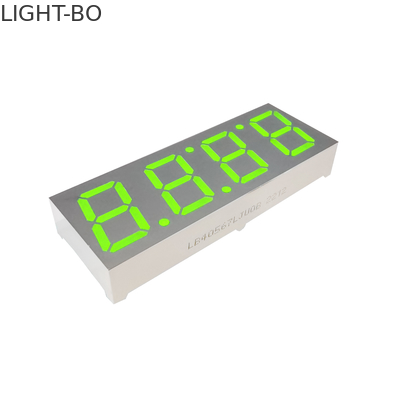

Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface

Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface
Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface
Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface

Large Image :  Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&ISO9100
Model Number: LB40567LJU0B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: T/T, Western Union
Supply Ability: 50000PCS/Day

Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface

Description
Outer Dimension: 50*19*8mm Emitting Colour: Yellow-Green
Digit Height: 0.56inch Polarity: Common Cathode
Lifespan: 80000hrs Usage: Industrial Temperature Indicator

Feature of Segment LED Displays

-- White segment Gray surface

-- High luminous intensity

-- Low current operation

-- Stable performance

-- Continuous uniform segments

-- Easy mounting on PCB

-- IC compatible

-- RoHS compliant

Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.



Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems



Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface 0Yellow Green 4 Digit 0.56inch 7 Segment LED Display White Segment Gray Surface 1

Code:Yellow Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 20   40 mcd
Spectrum With Of Half Value λ If=20mA   20   nm
Wavelength If=20mA 569   574 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25



Why choose us?

1. Best quality

- Three times of inspection on all products on production:

Step 1;raw material check

Step 2: process check and full inspection after chip&wire bonding

Step 3: full test before packing and partial check before shipment

2. Best price

- manufacturer

- best suppliers sources

- all products by oneself

3. Our customer

- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc

4. Company strength

- good quality&competitive price

- listed company

- factory of over 100 workers, with many auto-machines under advanced ERP management.

- management system: ISO 9001:2008,SGS



FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Segment LED Displays.

Q: How long is your delivery time?
A: Delivery time:About 15-20 days; According to order quantity.
Q: What is your terms of payment?
A: T/T,Western Union,Paypal with small amount.

Q: How can I get your catalogue and price list?

A: Please let us know your email or contact us from website directly for our catalogue and price list.

Q: Can I negotiate the prices?

A: Yes, we may consider discounts for multiple container load of mixed goods.

Q: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.

Q: May I have some samples for testing?

A: Yes,we can provide 5-10pcs free samples in your delivery cost.
