Oven Timer LED Display
Created with Pixso.

Customized Multifunction 7 Segment LED Display Oven Timer LED Displays

Customized Multifunction 7 Segment LED Display Oven Timer LED Displays

Brand Name: lightbo
Model Number: LB16640LWH-S-C1-SMT
MOQ: 1000PCS
Price: Negotiation
Payment Terms: T/T, Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,china
Certification:
ISO9001&RoHS
Color:
Pure White
Polarity:
Common Cathode
Dimensions:
166*40mm
Lifespan:
100000hrs
Application:
Oven Control
Led Chip:
Epistar
Service:
OEM / ODM
Packaging Details:
EPE+Carton
Supply Ability:
50000PCS/Day
Highlight:

Oven Timer 7 Segment LED Displays

,

Multifunction 7 Segment LED Display

,

Oven Timer Segment LED Displays

Product Description
Specification of Segment LED Displays
Product Name Custom Seven Segment LED Display Other Optional
Part NO. LB16640LWH-S-C1-SMT Can print your part number
Digit number 7 digit 1digit,2digits, 3digits,5digits,6 digits
Digit height   0.25,0.36,0.39....5.0(inch)
Color White Red, blue,pure green, yellow-green, orange,etc.
Size 166*40mm Other size are supported
Polarity Common Cathode Common Anode
Life span 80000hours
Free Samples supported
Lead time for sample 5-7 working days Tooling samples are 15-20 working days
Lead time for formal order 15-20 working days According to order quantity
OEM&ODM Support Based on customer's drawing or idea
LOGO printing Support Based on customer's drawing or idea
MOQ 1000PCS Can accept 100-500pcs for first order

Color:White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.3 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value λ If=20mA   20   nm
Wavelength If=20mA       nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120 ºC
Storage Temperature Range Tstg -40~+120 ºC
Solder Temperature(3 sec) Th 260 ºC



Application of Segment LED Displays

-- Audio Equipment or instrument panels;

-- General using for digital indicators;

-- Multimedia products;

-- Bank exchange rate display;

-- LED clock display;

-- Display for gas station and other various display areas of equipment/machine.

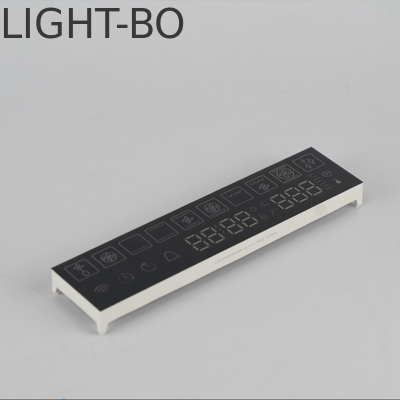

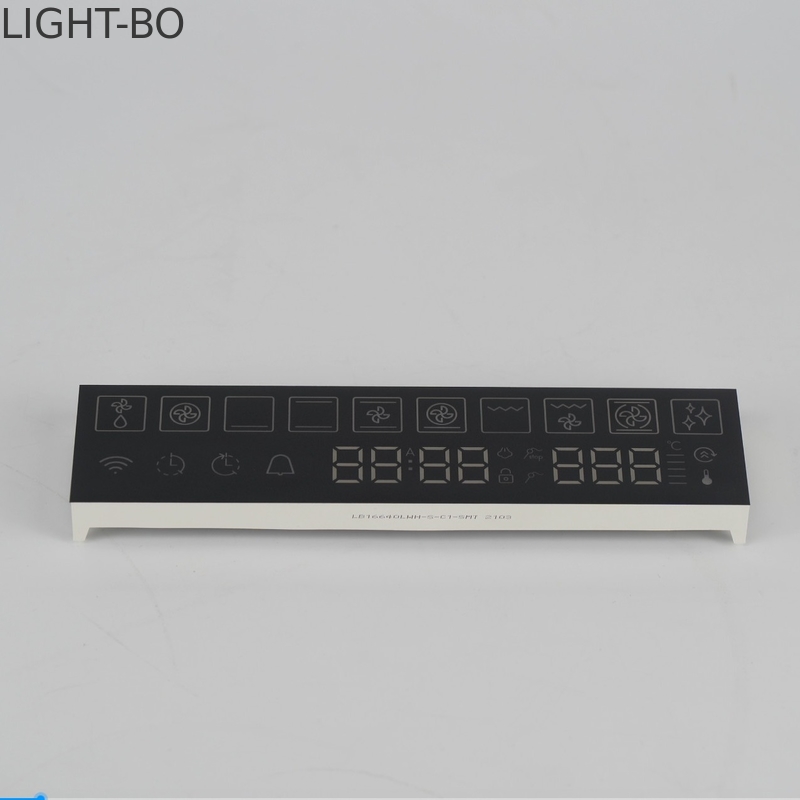

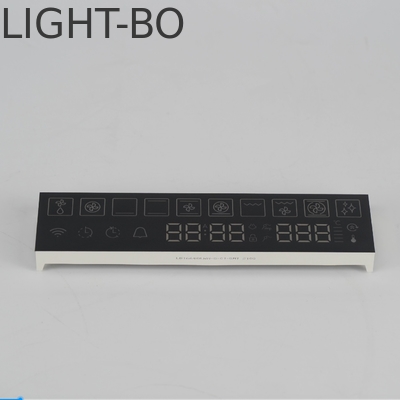

Customized Multifunction 7 Segment LED Display Oven Timer LED Displays 0


Oven Timer LED Displays
Have advantage of low power consumption,long lifetime and low cost .

Designed with Single row SMT pins bending ,suitable for wave soldering process ,
Can withstand environment temperature 120 Celsius degree.
We can customize the led display sizes,led colours, functional symbols as per customers requirement .
