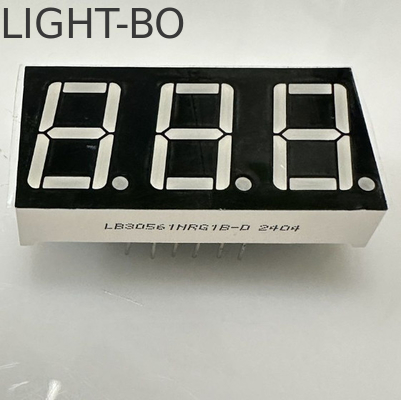

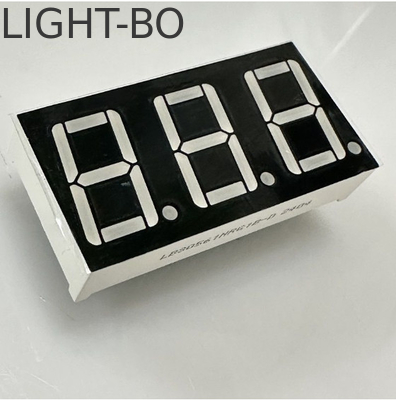

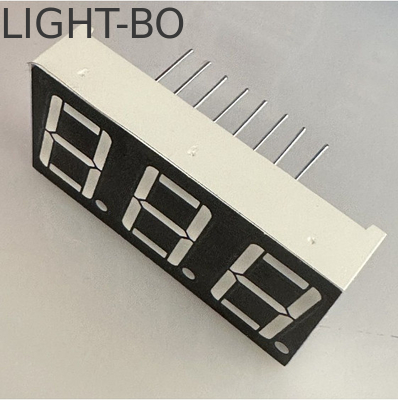

Bi-Colour Red And Green 3 Digit 0.56" 7 Segment LED Display Common Cathode For Temperature Controlle

Bi-Colour Red And Green 3 Digit 0.56" 7 Segment LED Display Common Cathode For Temperature Controlle

Brand Name: LIGHTBO

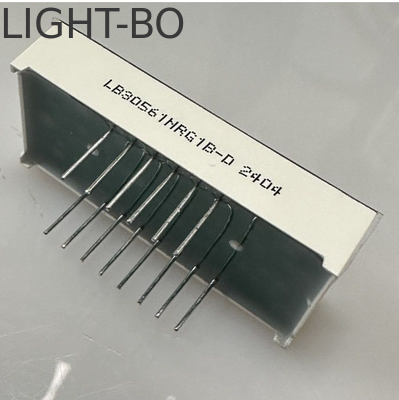

Model Number: LB30561NRG1B-D
MOQ: 1000
Payment Terms: TT , Western Union
Supply Ability: 50000pcs/days
Detail Information
Place of Origin:
SHENZHEN,CHINA
Certification:
ISO9001&ROHS
Digital Height:
14.2mm (0.56inch)
Package Dimensions:
37.6*19*8mm
Polarity:
Common Cathode

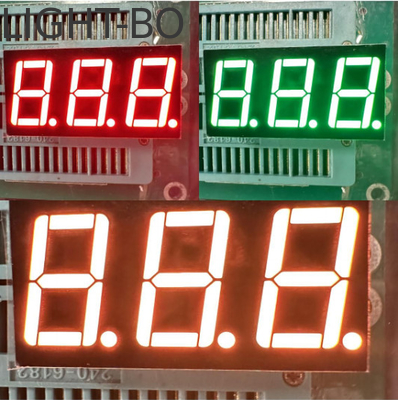

Emitting Colour:
RED/GREEN
Display Brightness:
High
Digits:
3
Material:
PVC , Epoxy Resin,LED Chip
Usage:
Indoor,Outdoor,Indoor/Outdoor
Application:
Temperature Controlle
Operating Temperature:
-40~80 ℃
Life Span:
80000hours
Forward Current:
20mA
Packaging Details:
EPE+Carton
Supply Ability:
50000pcs/days
Highlight:

Common Anode Full Color LED Display

,

Wide Viewing Distances LED Display

,

Common Anode LED Display

Product Description

Code: Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.2 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 20   40 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 525   530 nm

Code:Ultra Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm



Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25



Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant


Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
