Home Products

7 Segment LED Display

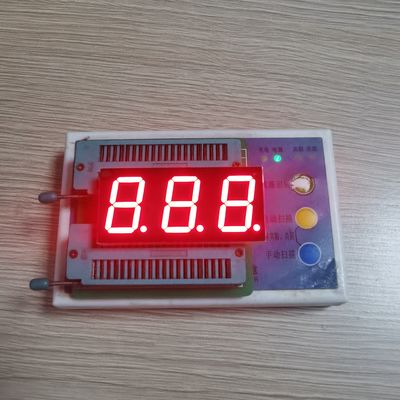

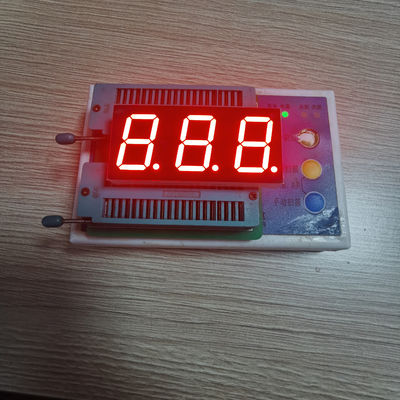

Ultra Bright Red Cathode Three Digit Seven Segment Led Display For Outdoor Display

Name: Ultra Bright Red Cathode Three Digit Seven Segment Led Display For Outdoor Display
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB30801LUR1B-9
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHTBO
Model Number:	LB30801LUR1B-9
MOQ:	1000PCS
Price:	Negotiation
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&ISO9001

Outer Dimension:

59.3*27.5*8.4mm

Polarity:

Common Cathode

Digital Height:

20.32mm (0.80 Inch)

Emitting Colour:

Ultra Bright Red

Lifespan:

100000hrs

Usage:

Indoor/Outdoor

Operating Temperature:

-45-85℃

Surface Color:

Black

Package:

DIP

Packaging Details:

EPE +CARTON

Supply Ability:

50000PCS/Day

Highlight:

Red Cathode Seven Segment Led Display

Ultra Bright Seven Segment Led Display

Outdoor Display Seven Segment Led Display

Product Description

Features:

Outer dimensions:50.4*19*8mm
Digit height: 14.2mm (0.56 inch)
Common Cathode
White segments Gray surface
Emitting color : ultra bright red

Advantages:

High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe

Code:Ultra Bright Red

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		635	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃
